MAX4744ELB+T

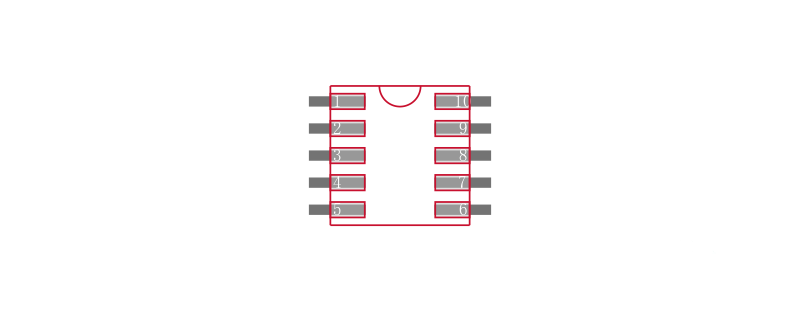

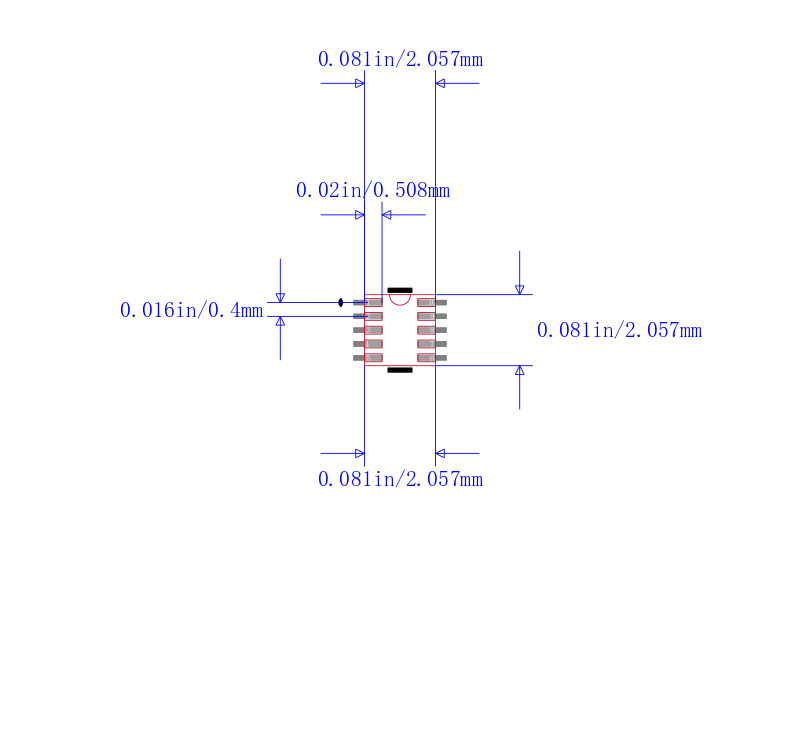

SPDT, 2 Func, 1Channel, BICMOS, PDSO10, 2 X 2MM, 0.8MM HEIGHT, LEAD FREE, MICRO DFN-10

音频 开关 IC 2 通道 10-uDFN（2x2）

得捷:
IC SWITCH DUAL SPDT 10UDFN

贸泽:
Analog Switch ICs Dual SPDT Audio Clickless Switch

安富利:

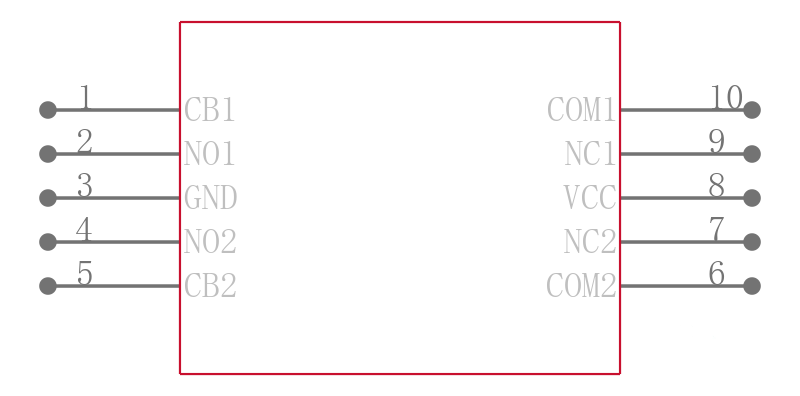

The MAX4744/MAX4744H/MAX4745/MAX4745H/MAX4746H dual SPDT single-pole/double-throw audioswitches feature negative signal capability that allowssignals as low as VCC - 5.5V to pass through withoutdistortion. These analog switches have a low on-resistanceand low supply current, and operate from a single+1.8V to +5.5V supply.The MAX4744/MAX4744H have internal shunt resistorsthat automatically discharge the capacitance at the normallyopen NO and normally closed NC terminalswhen they are not connected. The MAX4746H featuresinternal shunt resistors on NC_ terminals. This reducesclick-and-pop sounds that occur when switching audiosignals between precharged points. A break-before-makefeature further reduces popping. The MAX4744/MAX4745 control the switches with two control bits CB1 and CB2. The MAX4744H/MAX4745H/MAX4746H haveone control bit to switch both switches and an enableinput active-low EN to put the switches in a high-impedance mode.The MAX4744H/MAX4745H/MAX4746H also have aninternal protection network against voltages applied toCOM_ when VCC = 0V.These devices are available in a space-saving 10-pinµDFN 2mm x 2mm package and operate over the-40°C to +85°C extended temperature range.

Chip1Stop:
Analog Switch Dual SPDT 10-Pin UDFN T/R

Win Source:
IC SWITCH DUAL SPDT 10UDFN
