MAX4567EEE+

MAXIM INTEGRATED PRODUCTS  MAX4567EEE+  芯片, 视频开关

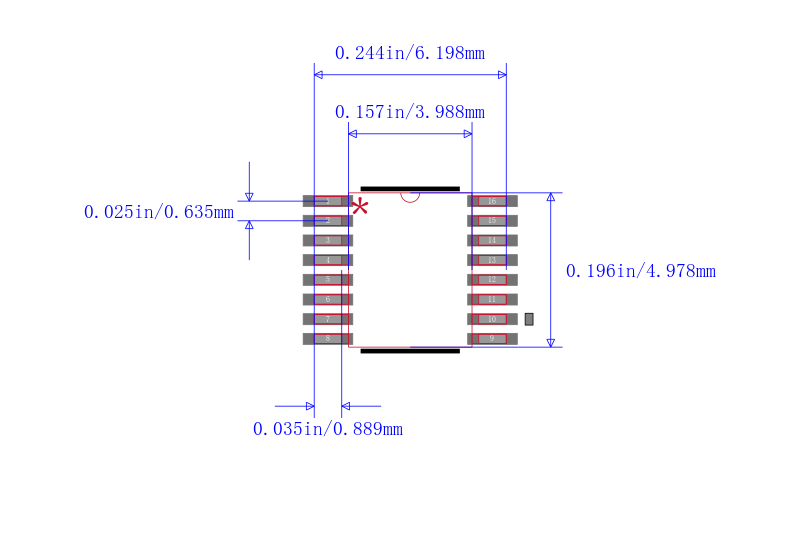

The is a dual, low voltage, bidirectional RF/video switch in 16 pin QSOP package. It is a low voltage T-switches designed for switching RF and video signals from DC to 350MHz in 50 ohm and 75ohm systems. Each switch is constructed in a "T" configuration ensuring excellent high frequency off isolation of -83dB at 10MHz. It can handle rail to rail analogue signals in either direction. On-resistance 60 ohm max is matched between switches to 2.5ohm max and is flat 2ohm max over the specified signal range, using ±5V supplies. The off leakage current is less than 1nA at +25°C and 10nA at +85°C. All digital inputs have 0.8V/2.4V logic thresholds ensuring both TTL and CMOS logic compatibility when using ±5V or a single +5V supply. This device is used in RF switching, video signal routing, high speed data acquisition test equipment ATE equipment and networking.

.

Supply voltage range is 2.7V to 12V, ±2.7V to ±6V

.

Operating temperature range from -40°C to 85°C

.

Two SPDT switches

.

Low power consumption of 1µW

.

Pin compatible with industry standard DG540, DG542, DG643 IC

.

Greater than 2KV ESD protection per method 3015.7

.

Low 50 ohm insertion loss is -2.5dB at 100MHz
