MAX4542EKA+T
数据手册.pdf模拟开关, 2 放大器, SPST - 常闭, 60 ohm, 2.7V 至 12V, SOT-23, 8 引脚

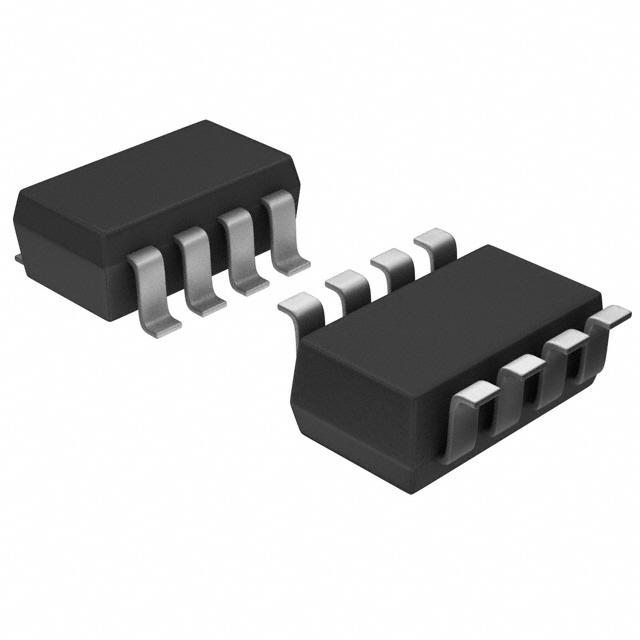

The from Products is a precision, dual SPST analogue switch in 8 pin SOT23 package. It is designed to operate from a single +2.7V to +12V supply and has a low power consumption of 5µW makes it ideal for battery powered equipment. When powered from a +5V supply, the device offers 2ohm max matching between channels, 60 ohm max on-resistance RON and 6ohm max RON flatness. This switch also offers 5pC max charge injection and a minimum of 2000V ESD protection per method 3015.7. Typical applications include battery operated systems, sample and hold circuits, heads-up displays, guidance and control systems, audio and video switching, military radios, +3V/+5V DACs and ADCs, PBX, PABX, cell phones, ultrasound and pagers.
- .
- Low leakage current of 100pA max
- .
- Operating temperature range from -40°C to +85°C
- .
- Two normally closed NC switches
- .
- TTL/CMOS logic compatible
- .
- Fast switching speeds of tON = 150ns max, tOFF = 100ns max
