MAX4599EUT+T
数据手册.pdfMaxim Integrated(美信)
主动器件

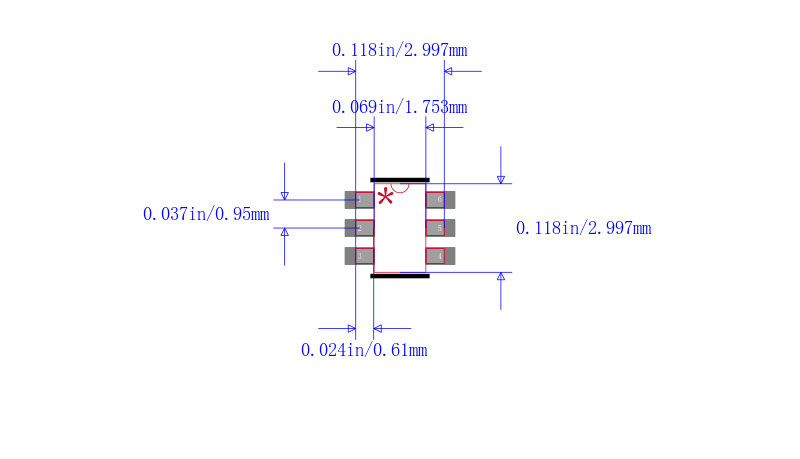

MAXIM INTEGRATED PRODUCTS MAX4599EUT+T 模拟开关, 低电压, SPDT, 1 放大器, 110 ohm, 2V 至 5.5V, SOT-23, 6 引脚
The is a low voltage, single supply, SPDT analogue switch in 6 pin SOT-23 package. It operates from a +2V to +5.5V single supply. It offers 60 ohm max on-resistance RON at +5V and fast switching times tON = 30ns max, tOFF = 25ns max. The MAX4599 features excellent RON flatness 4ohm max and matching 1ohm max between channels. This device also offers 5pC max charge injection. Typical applications include audio and video signal routing, cellular phones, low voltage data acquisition systems, sample and hold circuits.
- .
- On-channel -3dB bandwidth is 200MHz
- .
- Operating temperature range from -40°C to 85°C
- .
- Low leakage current of ±0.5nA at +25°C
- .
- Break before make switching
- .
- TTL/CMOS logic compatible
- .
- Off isolation is 76dB at 1MHz
- .
- Total harmonic distortion is 0.12%
