MAX3002ETP+
数据手册.pdfMaxim Integrated(美信)
主动器件
MAXIM INTEGRATED PRODUCTS MAX3002ETP+ 芯片, 逻辑转换器

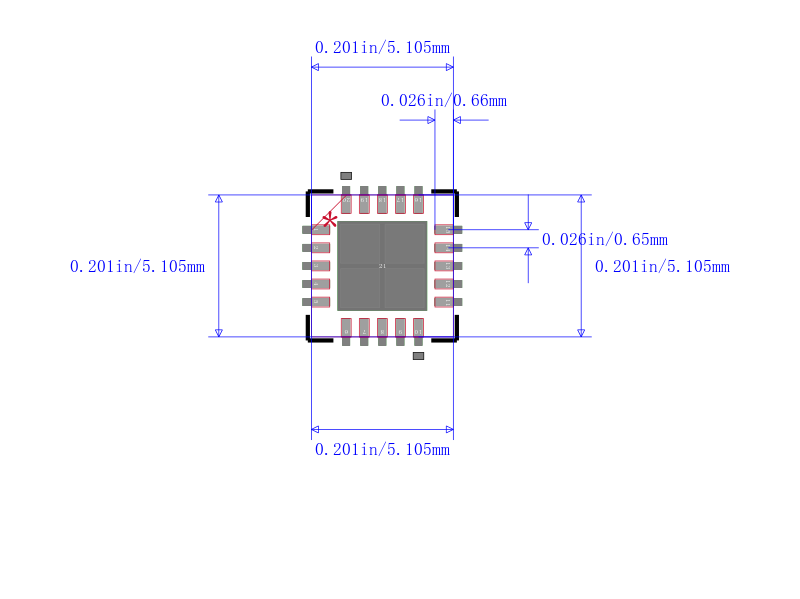

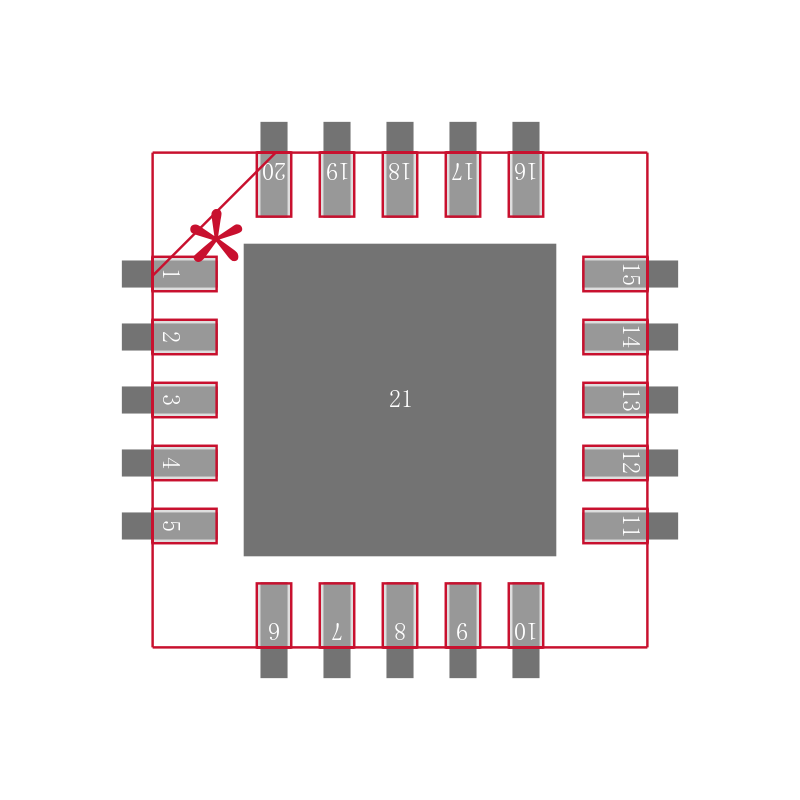

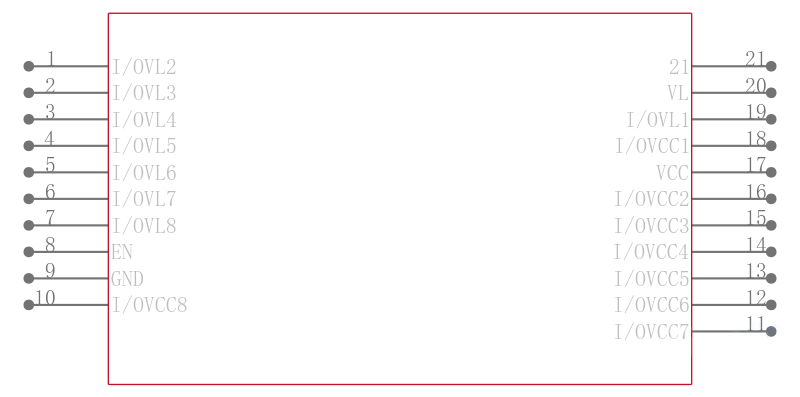

The is a ±2KV ESD protected, 0.1µA, 8-channel low voltage level translator in 20 pin TQFN package. This device allows data transfer in a multi-voltage system. Externally applied VCC and VL voltage sets the logic levels on either side of the device. Logic signals present on the VL side of the device appear as a higher voltage logic signal on the VCC side of the device and vice-versa.
- .
- Supply voltage range is 1.65V to 5.5V
- .
- Operating temperature range from -40°C to 85°C
- .
- Data rate of 20Mbps
- .
- Bidirectional level translation without using a directional pin
- .
- Operation down to +1.2V on VL
- .
- Ultra low supply current in shutdown mode is 0.1µA
- .
- Low quiescent current <10µA
- .
- 8 transmitter/8 receiver
