LM239
四路差动比较器

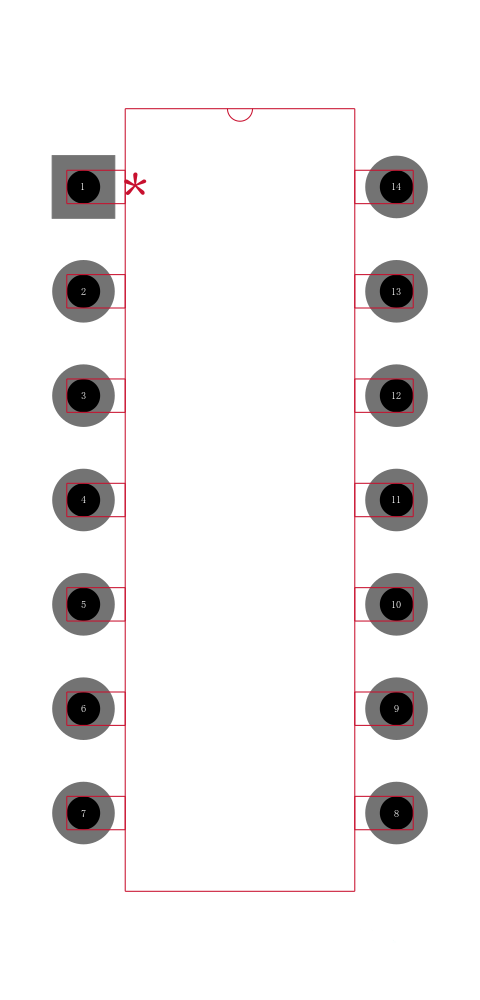

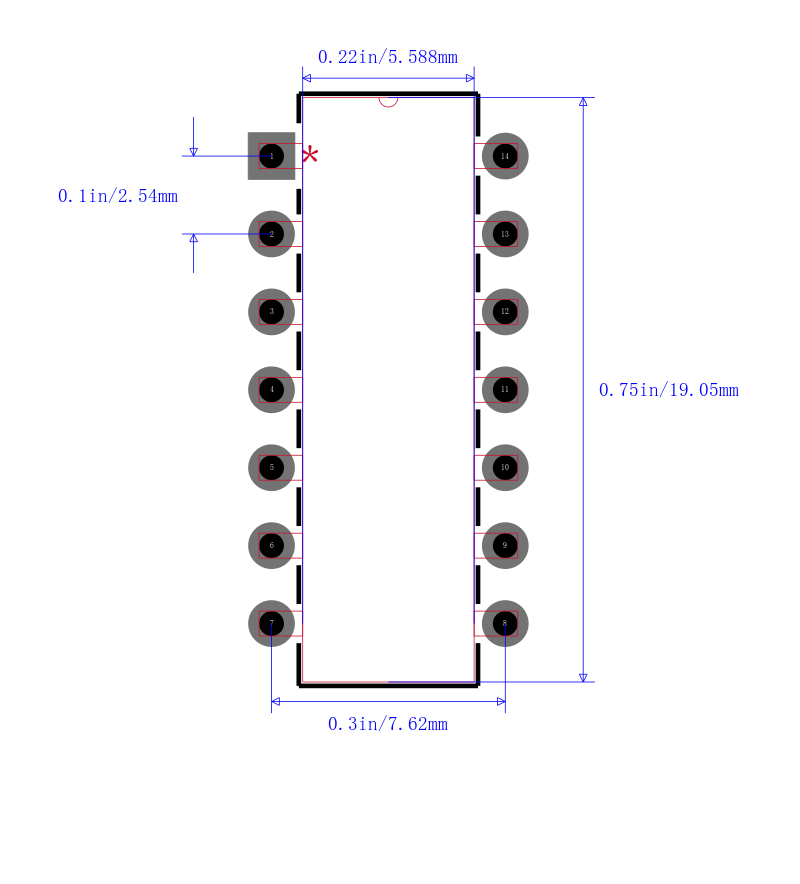

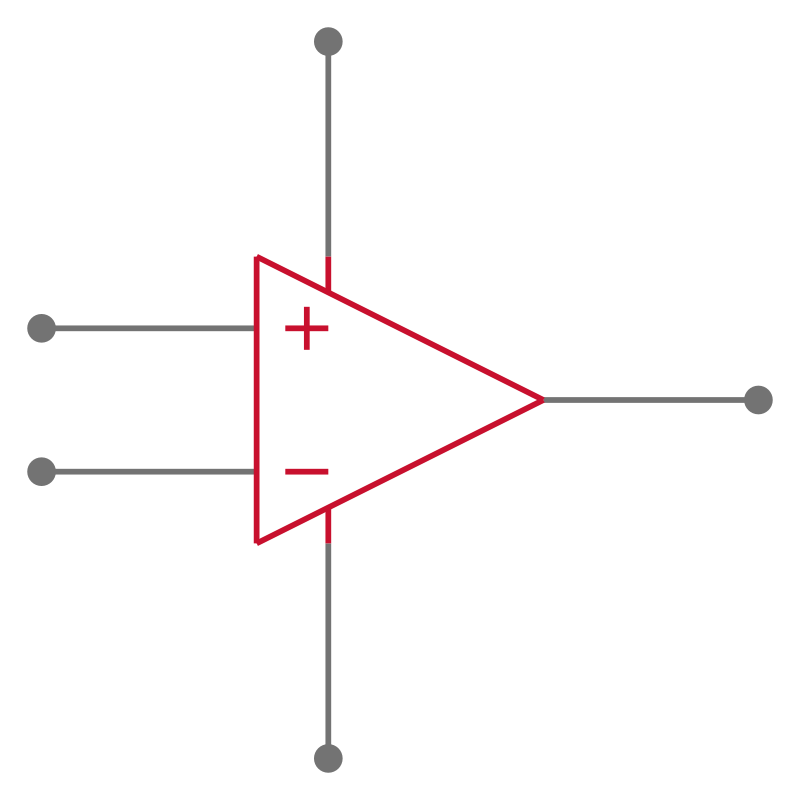

The LMx39x and the LM2901xx devices consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of voltages. Operation from dual supplies also is possible, as long as the difference between the two supplies is 2 V to 36 V, and VCC is at least 1.5 V more positive than the input common-mode voltage. Current drain is independent of the supply voltage. The outputs can be connected to other open-collector outputs to achieve wired-AND relationships.
The LM139 and LM139A devices are characterized for operation over the full military temperature range of –55°C to 125°C. The and LM239A devices are characterized for operation from –25°C to 125°C. The LM339 and LM339A devices are characterized for operation from 0°C to 70°C. The LM2901, LM2901AV, and LM2901V devices are characterized for operation from –40°C to 125°C.
- .
- Wide Supply Ranges
- .
- Single Supply: 2 V to 36 V
Tested to 30 V for Non-V Devices and
32 V for V-Suffix Devices
- .
- Dual Supplies: ±1 V to ±18 V
Tested to ±15 V for Non-V Devices and
±16 V for V-Suffix Devices
- .
- Low Supply-Current Drain Independent of
Supply Voltage: 0.8 mA Typical
- .
- Low Input Bias Current: 25 nA Typical
- .
- Low Input Offset Current: 3 nA Typical LM139
- .
- Low Input Offset Voltage: 2 mV Typical
- .
- Common-Mode Input Voltage Range
Includes Ground
- .
- Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: ±36 V
- .
- Low Output Saturation Voltage
- .
- Output Compatible With TTL, MOS, and CMOS
- .
- On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise
Noted. On All Other Products, Production
Processing Does Not Necessarily Include Testing
of All Parameters.
