LM431SACMLX

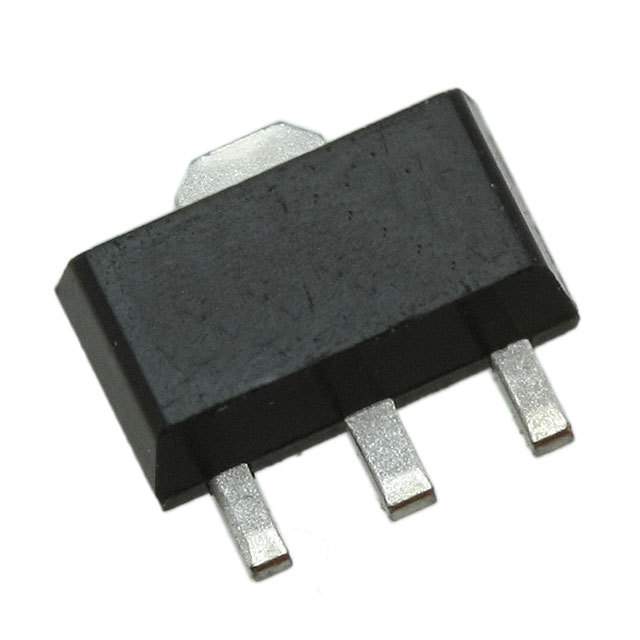

LM431SACMLX 电压基准电源IC 2.5V~ 36V SOT-89 marking/标记 43A 可编程并联稳压器

参考类型Reference Type| 分流器，可调式 Shunt, Adjustable

\---|---

输出电压VoVoltage - Output| 2.5V~ 36V

误差Tolerance| ±2%

温度系数Temperature Coefficient| 50ppm/°C

输入电压Voltage - Input| 2.5V~ 36V

阴极电流Current - Cathode| 1mA

输出电流IOUTCurrent - Output| 100mA/0.1A

Description & Applications| FEATURES • Programmable Shunt Regulator • Programmable Output Voltage to 36 Volts • Low Dynamic Output Impedance 0.20 Typical • Sink Current Capability of 1.0 to 100mA • Equivalent Full-Range Temperature Coefficient of 50ppm/°C Typical • Temperature Compensated for Operation Over Full Rated Operating Temperature Range • Low Output Noise Voltage • Fast Turn-on Response

描述与应用| 特点 •可编程并联稳压器 •可编程输出电压为36伏特 •低动态输出阻抗0.20典型 •灌电流能力为1.0至100mA •等效满量程温度系数为50ppm/°C典型值 •在整个额定工作温度范围的操作温度补偿 •低输出噪声电压 •快速启动响应
