LM4050BEM3-4.1+T
数据手册.pdfMaxim Integrated(美信)
主动器件
50PPM / ℃的精密微功耗并联电压基准，带有多种反向击穿电压 50ppm/°C Precision Micropower Shunt Voltage References with Multiple Reverse Breakdown Voltages

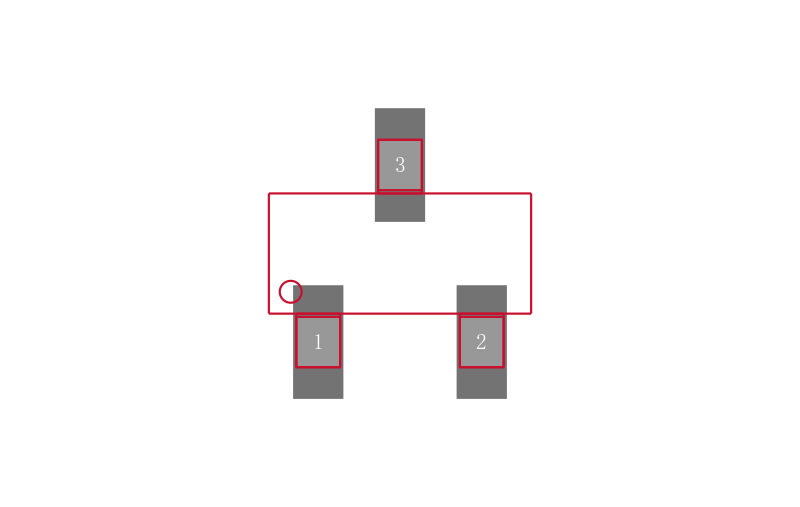

The is a precision, micropower, shunt voltage reference in 3 pin SOT-23 package. It is a precision two terminal, shunt mode, bandgap voltage reference with fixed reverse breakdown voltage of 4.096V. The laser trimmed resistors ensure excellent initial accuracy of 0.2% with a ±30ppm/°C temperature coefficient. The LM4050BEM3-4.1+T has a 60µA to 15mA shunt current capability with low dynamic impedance, ensuring stable reverse breakdown voltage accuracy over a wide range of operating temperature and current.
- .
- Operating temperature range from -40°C to 125°C
- .
- Low 64µVrms output noise 10Hz to 10KHz
- .
- Tolerates capacitive loads
- .
- Reverse breakdown voltage long term stability is 120ppm at T=1000h
- .
- No external stabilizing capacitors required while ensuring stability with capacitive loads
