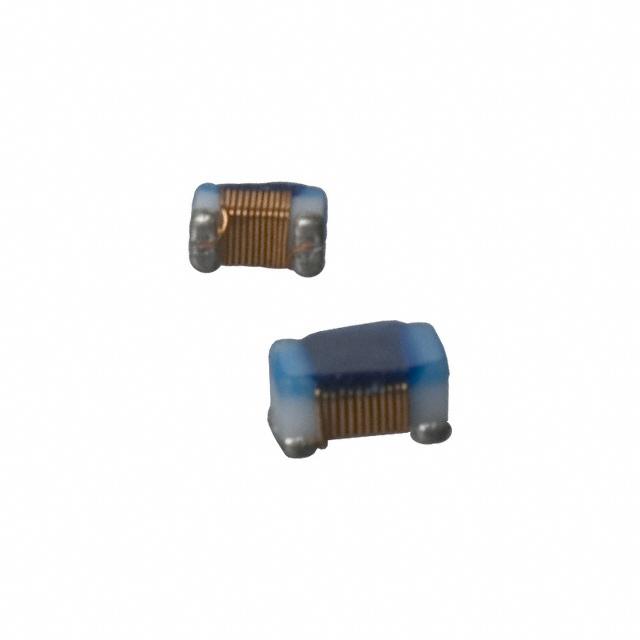

LQW15AN2N9C00D

片式电感器（片状线圈），高频卧式绕线 Chip Inductor Chip Coil for High Frequency Horizontal Wire Wound

固定器

得捷:
FIXED IND 2.9NH 750MA 70MOHM SMD

立创商城:
2.9nH ±0.2nH 70mΩ

贸泽:
固定电感器 2.9nH 0.2nH 100MHz

艾睿:
Is space on a PCB a limiting factor for your electronic circuit design? Then use this rf chip LQW15AN2N9C00D surface mount inductor from Murata to save valuable space. This SMD inductor has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device is made with wirewound technology. This product is 1.1 mm long, 0.6 mm tall and 0.7 mm deep. It has an inductance of 2.9n H. Its test frequency is 100M Hz, while its minimum self-resonant frequency is 15G Hz. This SMD inductor has a maximum DC current of 750m A with a maximum resistance of 70m Ohm.

安富利:
Ind RF Chip Wirewound 2.9nH 0.2nH 100MHz 20Q-Factor 750mA 0402 Paper T/R

Chip1Stop:
Inductor RF Chip Wirewound 2.9nH 0.2nH 100MHz 20Q-Factor 750mA 70mOhm DCR 0402 T/R

Verical:
Inductor RF Chip Unshielded Wirewound 0.0029uH 0.2nH 100MHz 20Q-Factor Non Magnetic 0.75A 0.07Ohm DCR 0402 T/R
