LGU2D271MELZ

270uF ±20% 200V 1100mA Φ22mm

**Features:

**

* Withstanding 3000 Hours Application of Rated Ripple Current at 105°C**

**

* Compliant to the RoHS directive 2002/95/EC**

** **Specifications:

**

* Temperature Range: –40°C to +105°C**

**

* Rated Voltage Range: 16-450 V**

**

* Rated Capacitance Range: 47 to 47000 μF**

**

* Capacitance Tolerance: ±20% at 120 Hz, 20°C

得捷:
CAP ALUM 270UF 20% 200V SNAP

立创商城:
270uF ±20% 200V

艾睿:

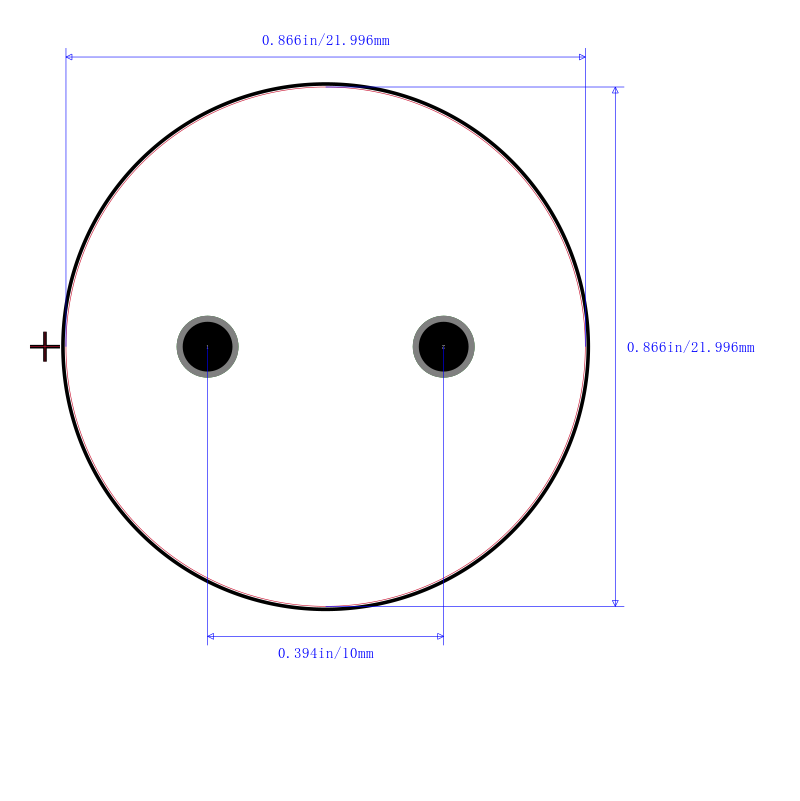

By implementing this electrolytic LGU2D271MELZ aluminum capacitor from Nichicon in your electronic circuit design you will lower costs in the long run. It can withstand a voltage of 200 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. Its capacitance value is 270uF. It has a tolerance of 20%. This product is 25 mm tall with a diameter of 22 mm. Its leakage current is 690@5Min μA. The LGU2D271MELZ aluminum electrolytic capacitor has a snap-in termination style.

Allied Electronics:
Capacitor Aluminum Electrolytic Cap 270uF 200V 20% Temp.105 Snap-In 22X25mm

安富利:
Cap Aluminum 270uF 200V 20% 22 X 25mm Snap-In 10mm 1100mA 3000h 105°C Bulk

Chip1Stop:
Cap Aluminum Lytic 270uF 200V 20% 22 X 25mm Snap-In 10mm 1100mA 3000h 105℃ Bulk

TME:
Capacitor: electrolytic; THT; 270uF; 200VDC; Ø22x25mm; ±20%; 3000h
