LT8610AHMSE#PBF

LT8610AHMSE#PBF

数据手册.pdf
Linear Technology 凌力尔特 主动器件

LINEAR TECHNOLOGY LT8610AHMSE#PBF DC-DC Switching Regulator Buck, Adjustable, 3.4V-42Vin, 41.16V/3.5A out, 2.15MHz, MSOP-16

Adjust the voltage level of your devices with this synchronous step down DC to DC converter from . This converter"s single output can produce a current up to 3.5 A. It only needs a voltage of at least 3.4 V while not exceeding 42 V to effectively power your circuit. With a fixed output that has a voltage of 5 V, this is power management at its best. This converter is 82 % efficient. To produce a constant current at your output, supply your circuit with a line regulation of 0.02%/V. Its switching regulator has a frequency of 200 to 2200 kHz. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.

LT8610AHMSE#PBF中文资料参数规格
技术参数

输出接口数 1

输出电压 5 V

输出电流 3.5 A

开关频率 200kHz ~ 2.2MHz

开关电流 6.7 A

输入电压Max 42 V

输入电压Min 3.4 V

输出电压Max 42 V

输出电压Min 0.97 V

输出电流Max 3.5 A

工作温度Max 150 ℃

工作温度Min -40 ℃

封装参数

安装方式 Surface Mount

引脚数 16

封装 MSOP-16

外形尺寸

高度 0.86 mm

封装 MSOP-16

物理参数

工作温度 -40℃ ~ 150℃ TJ

其他

产品生命周期 Active

包装方式 Cut Tape CT

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC版本 2015/12/17

LT8610AHMSE#PBF引脚图与封装图

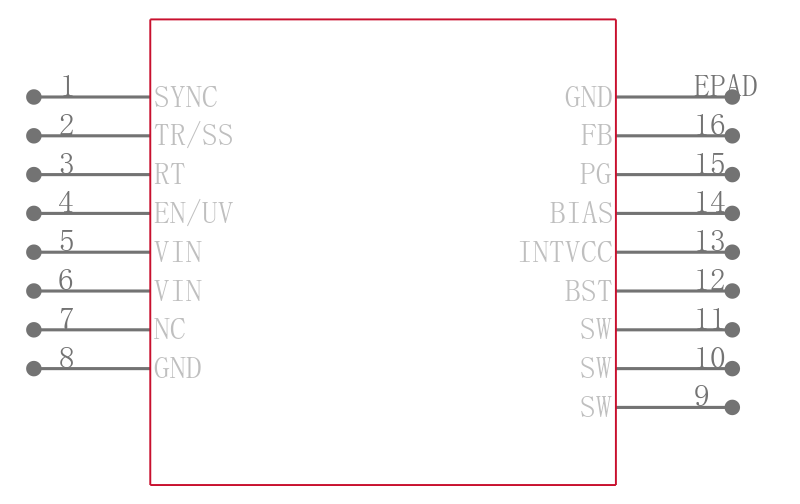

LT8610AHMSE#PBF引脚图

LT8610AHMSE#PBF引脚图

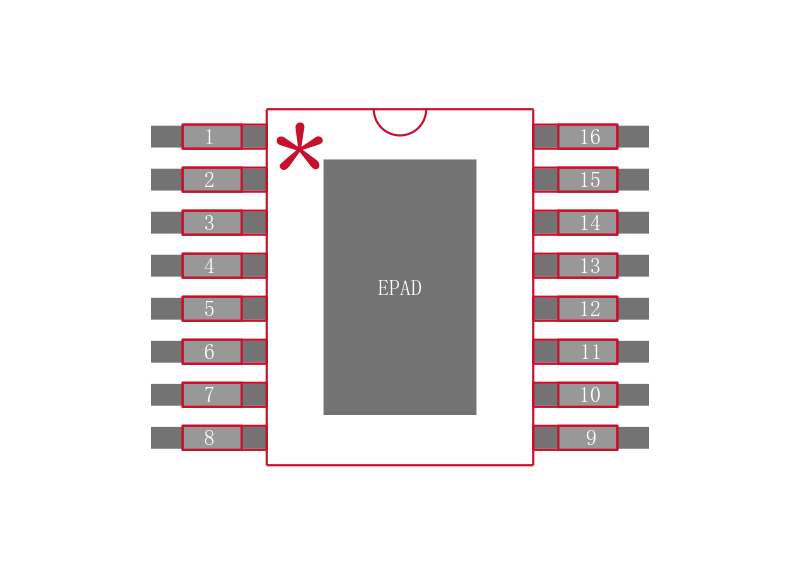

LT8610AHMSE#PBF封装图

LT8610AHMSE#PBF封装图

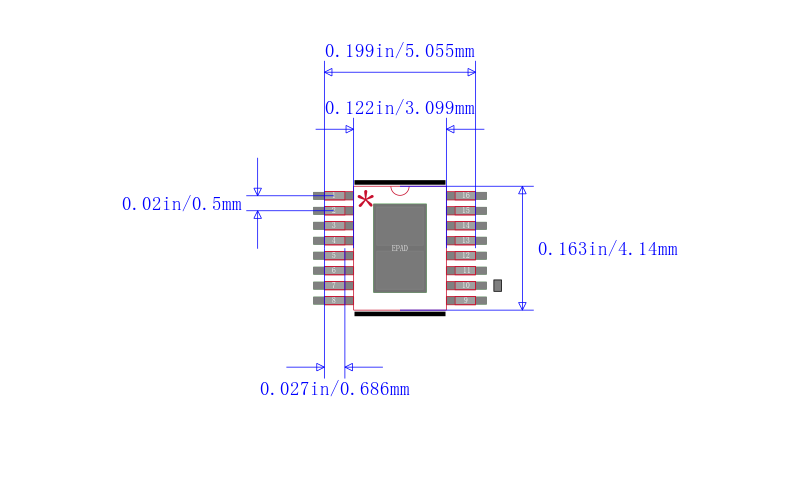

LT8610AHMSE#PBF封装焊盘图

LT8610AHMSE#PBF封装焊盘图

在线购买LT8610AHMSE#PBF
型号 制造商 描述 购买
LT8610AHMSE#PBF Linear Technology 凌力尔特 LINEAR TECHNOLOGY LT8610AHMSE#PBF DC-DC Switching Regulator Buck, Adjustable, 3.4V-42Vin, 41.16V/3.5A out, 2.15MHz, MSOP-16 搜索库存
替代型号LT8610AHMSE#PBF
图片 型号/品牌/封装 代替类型 描述 替代型号对比

型号: LT8610AHMSE#PBF

品牌: Linear Technology 凌力尔特

封装: 16-TFSOP 41.2V 3.5A 16Pin

当前型号

LINEAR TECHNOLOGY LT8610AHMSE#PBF DC-DC Switching Regulator Buck, Adjustable, 3.4V-42Vin, 41.16V/3.5A out, 2.15MHz, MSOP-16

当前型号

型号: LT8610AHMSE#TRPBF

品牌: 凌力尔特

封装: 16-TFSOP 3.5A 16Pin

完全替代

42V, 3.5A Synchronous Step-Down Regulator with 2.5µA Quiescent Current
