LT1085CT-12

IC REG LDO 12V 3A TO220-3

DESCRIPTION

The LT® 1083 series of positive adjustable regulators are designed to provide 7.5A, 5A and 3A with higher efficiency than currently available devices. All internal circuitry is designed to operate down to 1V input-to-output differential and the dropout voltage is fully specified as a function

of load current. Dropout is guaranteed at a maximum of 1.5V at maximum output current, decreasing at lower load currents. On-chip trimming adjusts the reference voltage to 1%. Current limit is also trimmed, minimizing the stress on both the regulator and power source circuitry under overload conditions.

FEATURES

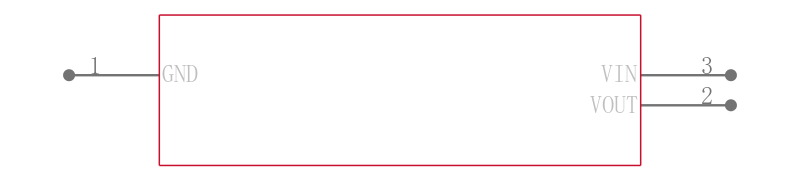

■ Three-Terminal Adjustable

■ Output Current of 3A, 5A or 7.5A

■ Operates Down to 1V Dropout

■ Guaranteed Dropout Voltage at Multiple Current Levels

■ Line Regulation: 0.015%

■ Load Regulation: 0.1%

■ 100% Thermal Limit Functional Test

■ Fixed Versions Available

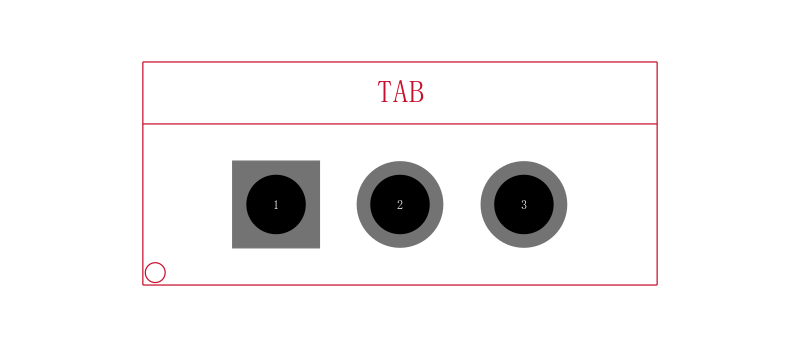

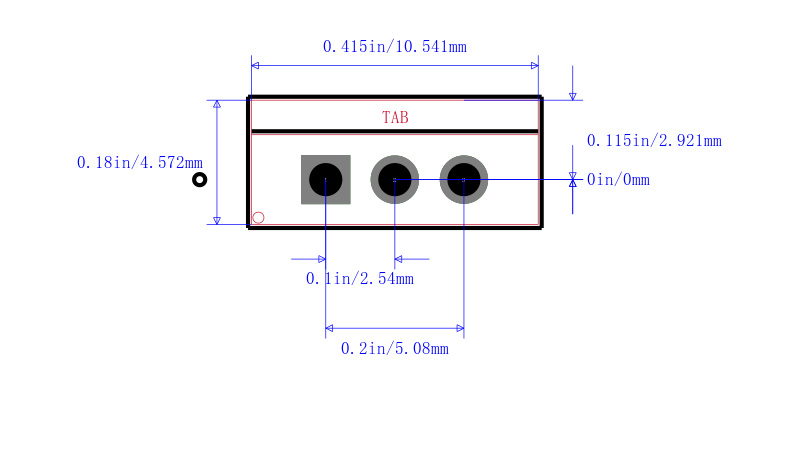

■ Available in 3-Lead Plastic TO-220, TO-3P and DD Packages
