LGG2W471MELC40
数据手册.pdfGG 系列 470 uF 450 V 20 % 扣接 铝 电解电容
470 µF 450 V 铝电解器 径向，Can - 卡入式 - 105°C 时为 2000 小时
得捷:
CAP ALUM 470UF 20% 450V SNAP
立创商城:
470uF ±20% 450V
艾睿:

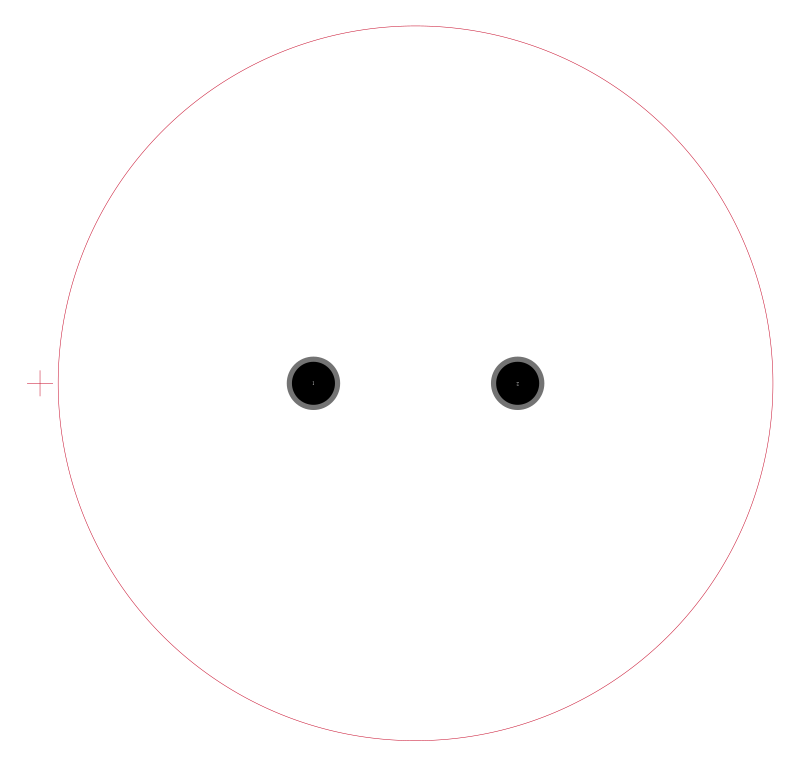

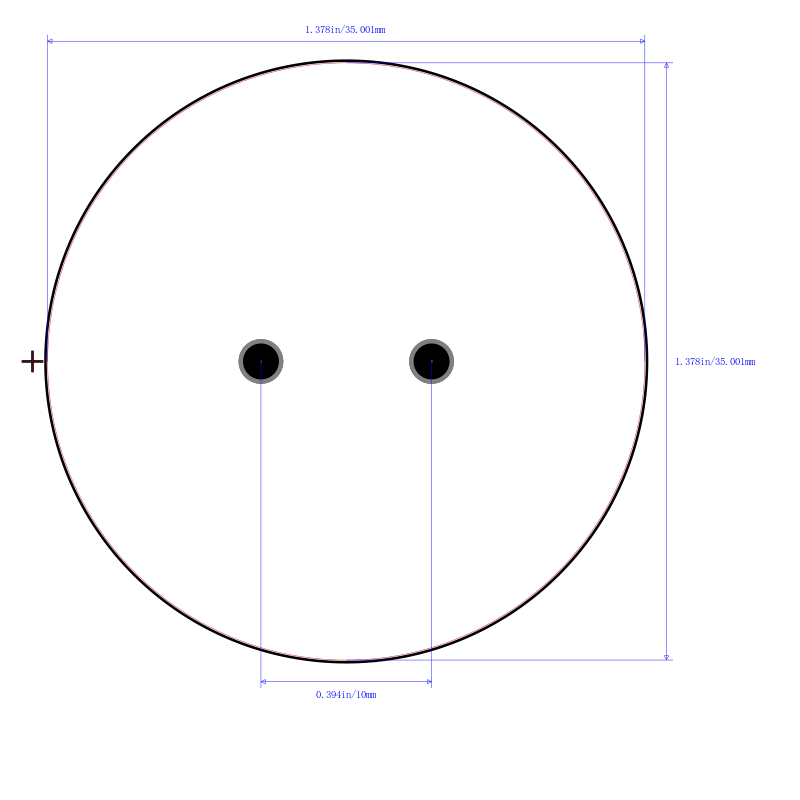

This electrolytic LGG2W471MELC40 aluminum capacitor from Nichicon combines low cost, high capacitance and high energy density all in one tiny component. It can withstand a voltage of 450 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.8 mm and a pitch of 10 mm. The LGG2W471MELC40 aluminum electrolytic capacitor has a snap-in termination style. Its leakage current is 1370@5Min μA. Its capacitance value is 470uF. It has a tolerance of 20%. This product is 40 mm tall with a diameter of 35 mm.
安富利:
Cap Aluminum 470uF 450V 20% 35 X 40mm 10mm 1550mA 2000 hr 105°C Bulk
