LTC2950CDDB-2#TRMPBF
数据手册.pdf
Linear Technology
凌力尔特
主动器件

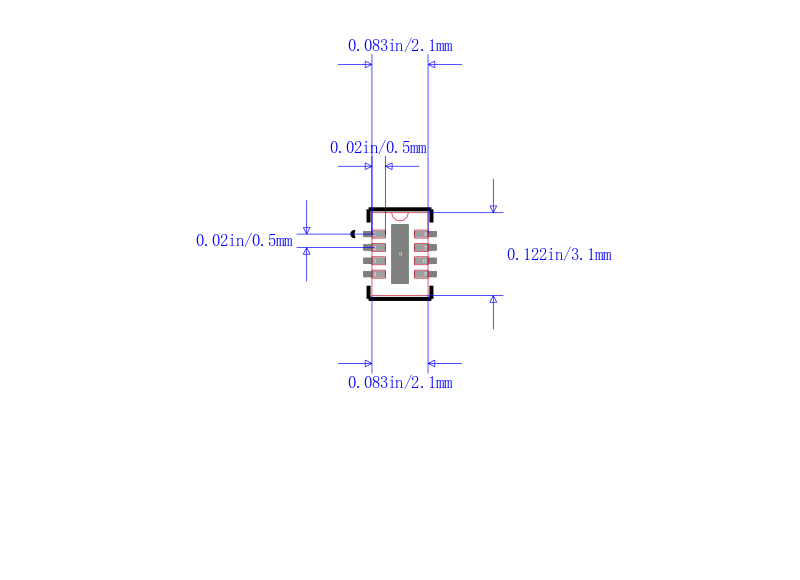

LINEAR TECHNOLOGY LTC2950CDDB-2#TRMPBF 芯片, 按钮控制器, 8DFN
The is a micropower wide input voltage range Pushbutton ON/OFF Controller. The part contains a pushbutton input with independently programmable ON and OFF debounce times that control the toggling of an open drain enable output. The part also contains a simple microprocessor interface to allow for proper system housekeeping prior to power down. Under system fault conditions, an internal KILL timer ensures proper power down. The LTC2950 operates over a wide 2.7 to 26.4V input voltage range to accommodate a wide variety of input power supplies. Very low quiescent current 6µA typical makes the LTC2950 ideally suited for battery powered applications.
- .
- Adjustable pushbutton on/off timers
- .
- 6µA Low supply current
- .
- Simple interface allows graceful µP shut down
- .
- High input voltage PB pin with internal pull up resistor
- .
- ±10kV ESD HBM on PB input
- .
- Accurate 0.6V threshold on KILL comparator input
