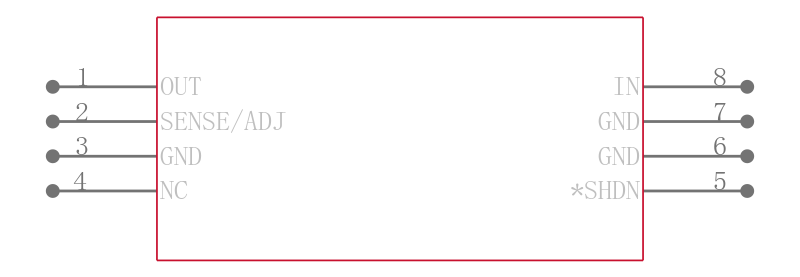

LT1963AES8-3.3

3.3V固定输出，Iout=1.5A，Vin=20VMax

DESCRIPTION

The LT® 1963A series are low dropout regulators optimized for fast transient response. The devices are capable of supplying 1.5A of output current with a dropout voltage of 340mV. Operating quiescent current is 1mA, dropping to < 1μA in shutdown. Quiescent current is well controlled; it does not rise in dropout as it does with many other regulators. In addition to fast transient response, the LT1963A regulators have very low output noise which makes them ideal for sensitive RF supply applications.

FEATURES

Optimized for Fast Transient Response

Output Current: 1.5A

Dropout Voltage: 340mV

Low Noise: 40μVRMS10Hz to 100kHz

1mA Quiescent Current

 No Protection Diodes Needed

 Controlled Quiescent Current in Dropout

 Fixed Output Voltages: 1.5V, 1.8V, 2.5V, 3.3V

 Adjustable Output from 1.21V to 20V

 < 1μA Quiescent Current in Shutdown

 Stable with 10μF Output Capacitor

 Stable with Ceramic Capacitors

 Reverse Battery Protection

 No Reverse Current

Thermal Limiting

 5-Lead TO-220, DD, 3-Lead SOT-223 and  8-Lead SO Packages
