LD1086DT25TR
数据手册.pdf1.5A，STMicroelectronicsL78 系列三端子正调节器嵌入内部电流限制和热关闭。 提供充足的散热片，可提供超过 1A 的输出电流。### 线性电压稳压器，STMicroelectronics
DESCRIPTION
The LD1086 is a LOW DROP Voltage Regulator able to provide up to 1.5A of Output Current. Dropout is guaranteed at a maximum of 1.2V at the maximum output current, decreasing at lower loads. The LD1086 is pin to pin compatible with the older 3-terminal adjustable regulators, but has better performances in term of drop and output tolerance.
■ TYPICAL DROPOUT 1.3V AT 1.5A
■ THREE TERMINAL ADJUSTABLE OR FIXED OUTPUT VOLTAGE 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, 3.6V, 5V, 8V, 9V, 12V.
■ GUARANTEED OUTPUT CURRENT UP TO 1.5A
■ OUPUT TOLERANCE ±1% AT 25°C AND ±2% IN FULL TEMPERATURE RANGE
■ INTERNAL POWER AND THERMAL LIMIT
■ WIDE OPERATING TEMPERATURE RANGE -40°C TO 125°C

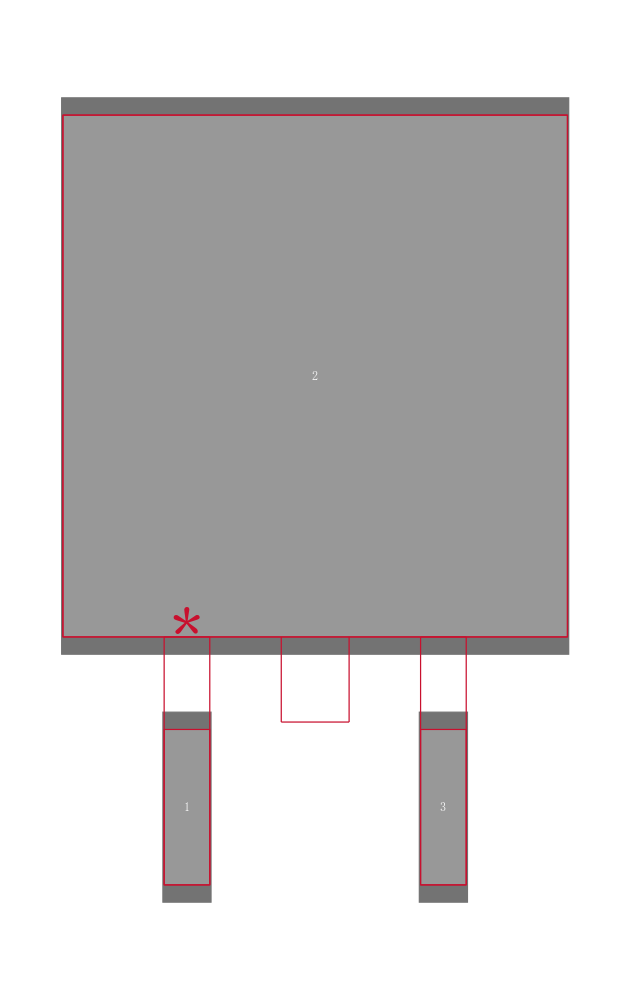

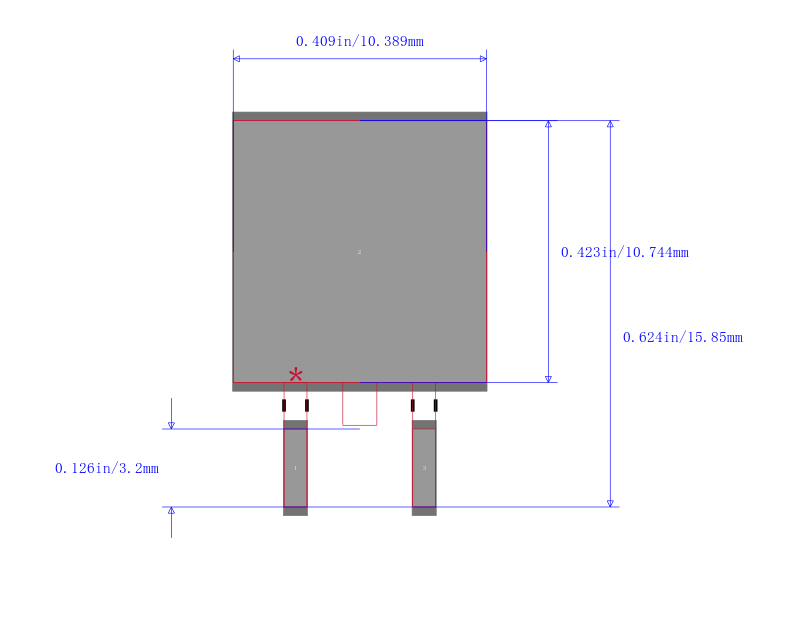

■ PACKAGE AVAILABLE: TO-220, D2PAK,D2PAK/A, DPAK
■ PINOUT COMPATIBILITY WITH STANDARD ADJUSTABLE VREG
