LTC1540IS8

Comparator Single ±5.5V/11V 8Pin SOIC N

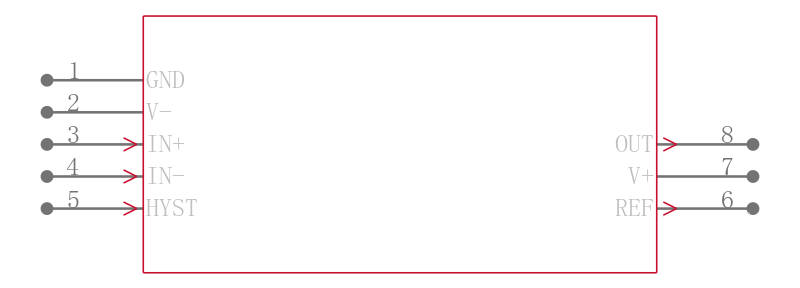

DESCRIPTIO U

The LTC ®1540 is an ultralow power, single comparator with built-in reference. The comparator’s features include less than 0.6µA supply current over the commer cial temperature range, a 1.182V ±2% reference, pro

grammable hysteresis and TTL/CMOS outputs that sink and source current. The reference output can drive a

bypass capacitor of up to 0.01µF without oscillation.

FEATURES

■ Ultralow Quiescent Current: 0.3µA Typ

■ Reference Output Drives 0.01µF Capacitor

■ Adjustable Hysteresis

■ Available in 3mm x 3mm x 0.8mm DFN Package

■ Wide Supply Range: 2V to 11V

■ Input Voltage Range Includes the Negative Supply

■ Reference Output Sources Up to 1mA

■ TTL/CMOS Compatible Outputs

■ 60µs Propagation Delay with 10mV Overdrive

■ No Crowbar Current

■ 40mA Continuous Source Current

■ Pin Compatible with LTC1440, MAX921, MAX931

APPLICATIONS

■ Battery-Powered System Monitoring

■ Threshold Detectors

■ Window Comparators

■ Oscillator Circuits
