LTC2645CMS-L8#PBF

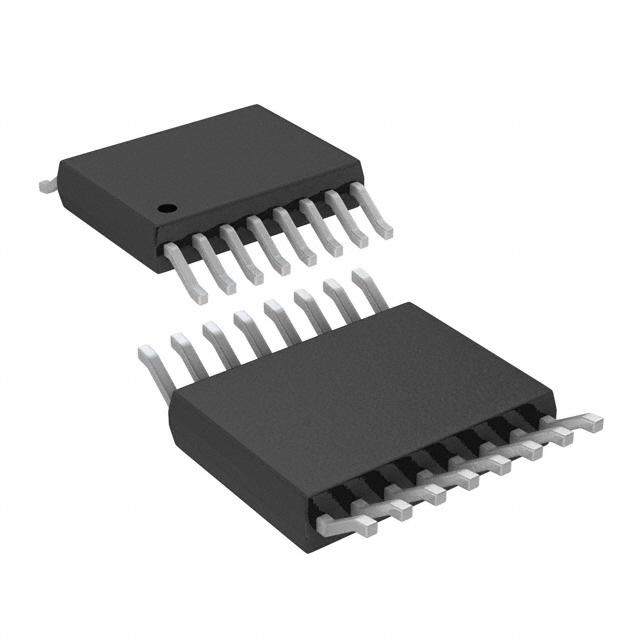

LINEAR TECHNOLOGY  LTC2645CMS-L8#PBF  数模转换器, 8 bit, 100 kSPS, 差分, 2.7V 至 5.5V, MSOP, 16 引脚

The is a quad 8-bit PWM-to-voltage output Digital-to-analog Converter DAC with an integrated high accuracy, low-drift, 10ppm/°C reference. It has rail-to-rail output buffers and is guaranteed monotonic. The LTC2645 measures the period and pulse width of the PWM input signals and updates the voltage output DAC after each corresponding PWM input rising edge. The DAC outputs update and settle to 12-bit accuracy within 8µs typically and are capable of sourcing and sinking up to 5/10mA, eliminating voltage ripple and replacing slow analog filters and buffer amplifiers. The LTC2645 has a full-scale output of 2.5V using the 10ppm/°C internal reference. It can operate with an external reference, which sets the full-scale output equal to the external reference voltage. The DAC enters a pin-selectable idle state when the PWM input is held unchanged for more than 60ms. The part operates from a single 2.7 to 5.5V supply and supports PWM input voltages from 1.71 to 5.5V.

.

No latency PWM-to-voltage conversion

.

Voltage output updates and settles within 8µs
