LTC4316CDD#PBF
数据手册.pdf
Linear Technology
凌力尔特
电子元器件分类

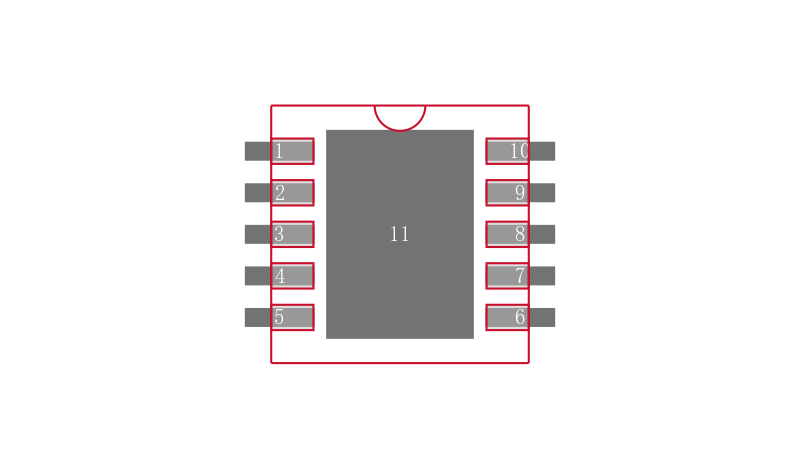

LINEAR TECHNOLOGY LTC4316CDD#PBF 专用接口, I2C, SMBus, I2C总线与SMBus总线系统应用程序, 服务器, 电信, 2.25 V, 5.5 V, DFN, 10 引脚
The is a single I²C/SMBus Address Translator enables the hardwired address of one or more I²C or SMBus slave devices to be translated to a different address. It allows slaves with the same hardwired address to coexist on the same bus. Only discrete resistors are needed to select the new address and no software programming is required. Up to 127 different address translations are available. It incorporates a pass-through mode which disables the address translation and allows general call addressing by the master. It is designed to automatically recover from abnormal bus conditions like bus stuck low or premature STOP bits.
- .
- Allows multiple slaves with the same address to coexist on the same bus
- .
- Resistor configurable address translation
- .
- No software programming required
- .
- Pass-through mode allows general call addressing
- .
- ±4kV HBM ESD ruggedness
- .
- Stuck bus timeout
- .
- Prevents SDA and SCL corruption during live board insertion and removal from backplane
- .
- Support bus hot swap
