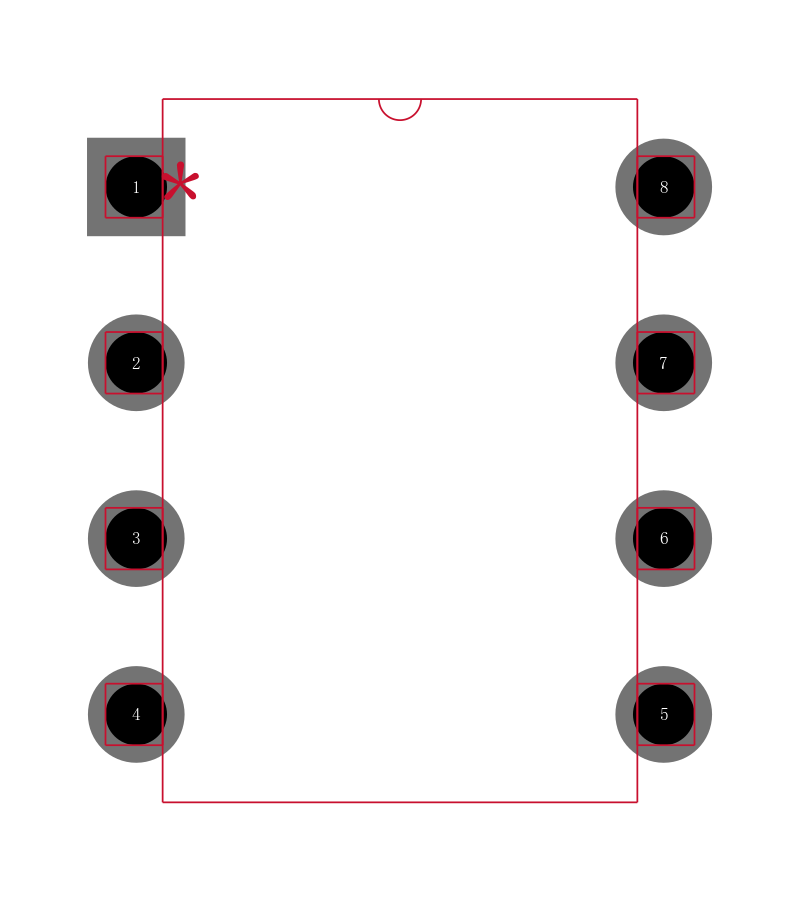

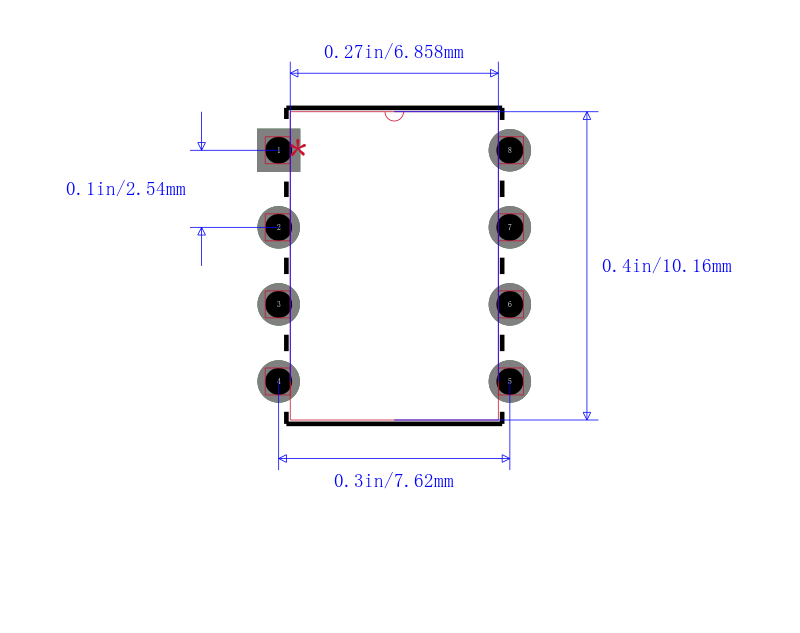

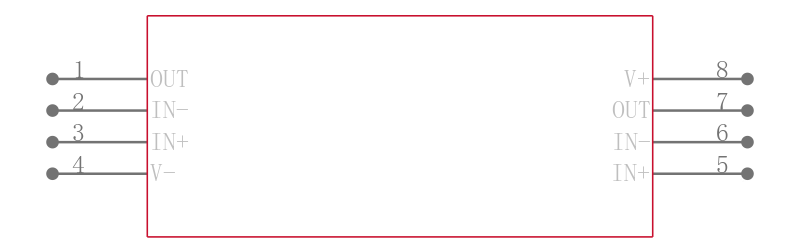

LT1358CN8
数据手册.pdfIC OPAMP VFB 25MHz 8DIP
Description
The LT1358/LT1359 are dual and quad low power high speed operational amplifiers with outstanding AC and DC performance. The amplifiers feature much lower supply current and higher slew rate than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with matched high impedance inputs and the slewing performance of a current feedback amplifier. The high slew rate and single stage design provide excellent settling characteristics which make the circuit an ideal choice for data acquisition systems. Each output drives a 500 Ω load to ±12.5V with ±15V supplies and a 150 Ω load to ±3V on ±5V supplies. The amplifiers are stable with any capacitive load making them useful in buffer applications.
FEATURES
■ 25MHz Gain Bandwidth
■ 600V/µs Slew Rate
■ 2.5mA Maximum Supply Current per Amplifier
■ Unity-Gain Stable
■ C-Load™ Op Amp Drives All Capacitive Loads
■ 8nV/√Hz Input Noise Voltage
■ 600µV Maximum Input Offset Voltage
■ 500nA Maximum Input Bias Current
■ 120nA Maximum Input Offset Current
■ 20V/mV Minimum DC Gain, RL=1k
■ 115ns Settling Time to 0.1%, 10V Step
■ 220ns Settling Time to 0.01%, 10V Step
■ ±12.5V Minimum Output Swing into 500Ω
■ ±3V Minimum Output Swing into 150Ω
■ Specified at ±2.5V, ±5V, and ±15V
