LTC3646IMSE#PBF

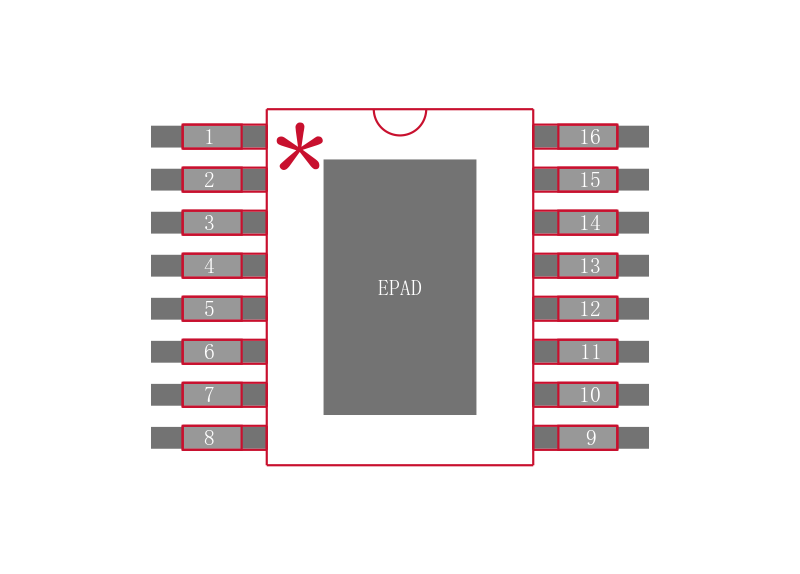

LINEAR TECHNOLOGY  LTC3646IMSE#PBF  直流-直流开关降压逐步递减稳压器, 可调, 4V-40V输入, 2V-30V输出, 1A输出, MSOP-16

The is a high-efficiency step-down DC-to-DC Converter with internal high side and synchronous power FETs. It draws only 140µA typical DC supply current in Burst Mode® operation at no load while maintaining output voltage regulation. The LTC3646 can supply up to a 1A load and its combination of Burst Mode® operation, integrated power switches and low quiescent current provides high efficiency over a broad range of load currents. Alternatively, it can be used in forced continuous mode for ripple sensitive applications. The LTC3646 has a wide 4 to 40V input range and its patented controlled on-time architecture and 0.6V reference voltage allow for large step-down ratios without the risk of output overvoltage. The frequency may be set between 200kHz and 3MHz with a program resistor or synchronized to an external clock. The internal soft-start, short-circuit protection and voltage rating make the LTC3646 a robust part ideal for high voltage applications.

.

Internal or external compensation

.

Up to 95% high efficiency

.

±1% Accurate reference voltage
