Automation Input/Output Kit

The Automation Input/Output Card AUT_ISO-V1 is an application expansion satellite card of the Hexagon Application Kits. The satellite card along with a CPU board i.e. CPU_45A-V2 demonstrates ISOFACE capabilities together with

XMC4500.

Connection to CPU board i.e. CPU_45A-V2 via satellite connector ACT

ISOFACE OUT, up to 8 channels

ISOFACE IN, up to 8 channels

IC based Input/Output expander up to 8 channels

Power supply

Powerjack for external 24V supply

From CPU board via ACT satellite connector

### 随附

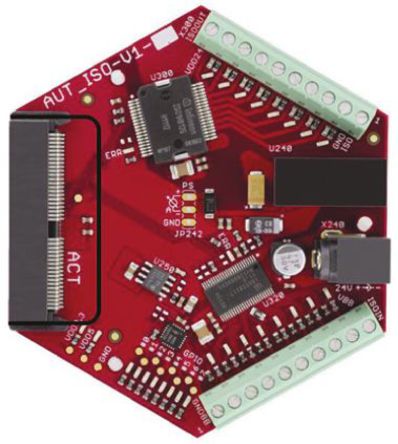

Automation I/O Card AUT_ISO-V1

Power Supply 24V / 1A
