AD5675ARUZ-REEL7
数据手册.pdfDAC 8CH Segment 16Bit 20Pin TSSOP T/R

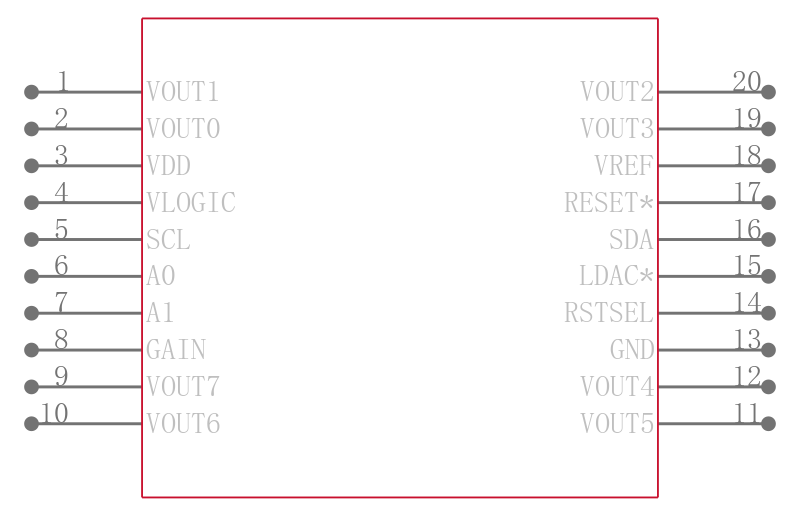

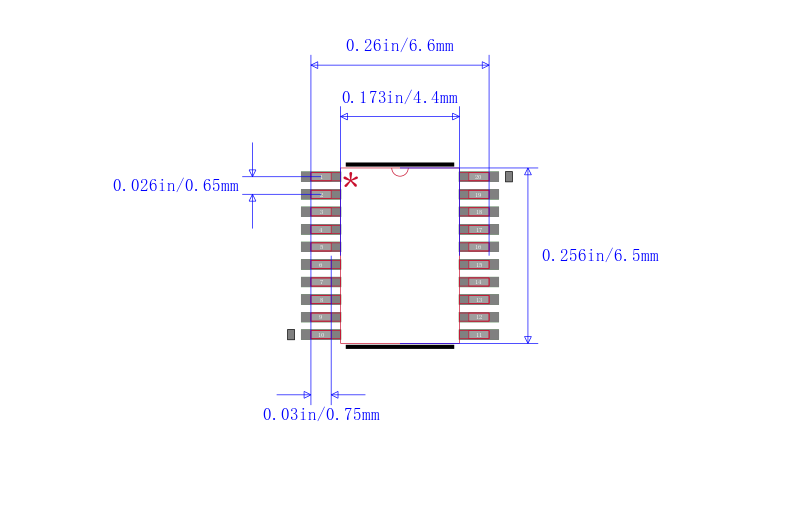

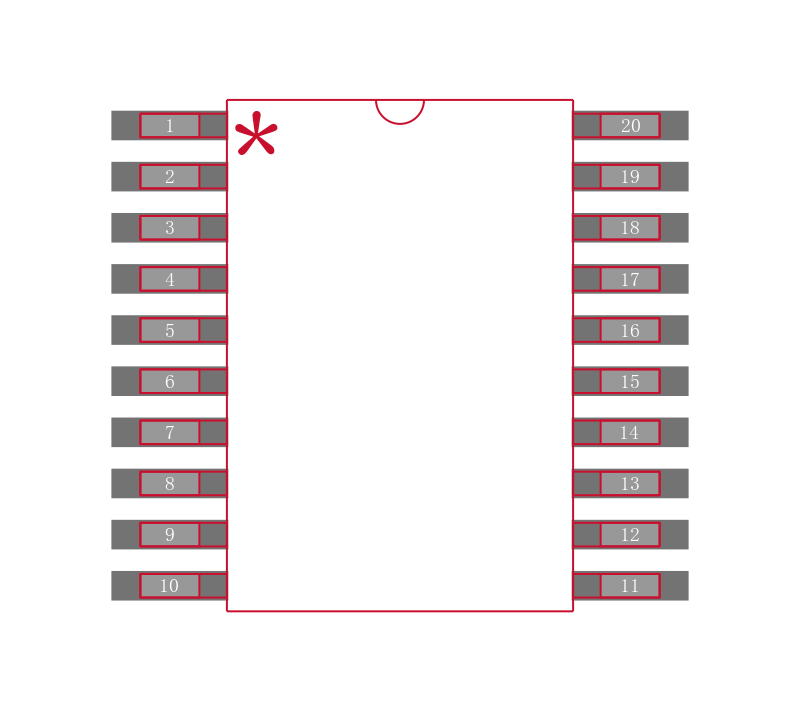

Product Details
The AD5675 is a low power, octal, 16-bit buffered voltage output digital-to-analog converter DAC. The device includes a gain select pin, giving a full-scale output of VREF gain = 1 or 2 × VREF gain = 2. The device operates from a single 2.7 V to 5.5 V supply and is guaranteed monotonic by design. The AD5675 is available in 20-lead TSSOP and LFCSP packages. The power-on reset circuit and a RSTSEL pin ensure that the output DACs power up to zero scale or midscale and remain there until a valid write takes place. The AD5675 contains a power-down mode, reducing the current consumption to 1 µA typical while in power-down mode. The AD5675 uses a versatile 2-wire serial interface that operates at clock rates up to 400 kHz, and includes a VLOGIC pin intended for 1.8 V to 5.5 V logic.
**Applications**
- .
- Optical transceivers
- .
- Base station power amplifiers
- .
- Process control PLC input/output cards
- .
- Industrial automation
- .
- Data acquisition systems
### Features and Benefits
- .
- High performance
- .
- High relative accuracy INL: ±3 LSB maximum at 16 bits
- .
- Total unadjusted error TUE: ±0.14% of FSR maximum
- .
- Offset error: ±1.5 mV maximum
- .
- Gain error: ±0.06% of FSR maximum
- .
- Wide operating ranges
- .
- −40°C to +125°C temperature range
- .
- 2.7 V to 5.5 V power supply
- .
- Easy implementation
- .
- User selectable gain of 1 or 2 GAIN pin/bit
- .
- 1.8 V logic compatibility
- .
- I2C-compatible serial interface
- .
- Robust 2 kV HBM and 1.5 kV FICDM ESD rating
- .
- 20-lead TSSOP and LFCSP RoHS-compliant packages
