ADM660ARU-REEL

Charge Pump INV/STPUP -1.5V to -7V/5V to 14V 100mA 16Pin TSSOP T/R

Product Details

The ADM660/ADM8660 is a charge-pump voltage converter that can be used to either invert the input supply voltage giving VOUT = -VIN or double it ADM660 only giving VOUT = 2 x VIN. Input voltages ranging from +1.5 V to +7 V can be inverted into a negative -1.5 V to -7 V output supply. This inverting scheme is ideal for generating a negative rail in single power supply systems. Only two small external capacitors are needed for the charge pump. Output currents up to 50 mA with greater than 90% efficiency are achievable, while 100 mA achieves greater than 80% efficiency.

A Frequency Control FC input pin is used to select either 25 kHz or 120 kHz charge-pump operation. This is used to optimize capacitor size and quiescent current. With 25 kHz selected, a 10 µF external capacitor is suitable, while with 120 kHz the capacitor may be reduced to 2.2 µF. The oscillator frequency on the ADM660 can also be controlled with an external capacitor connected to the OSC input or by driving this input with an external clock. In applications where a higher supply voltage is desired it is possible to use the ADM660 to double the input voltage. With input voltages from 2.5 V to 7 V, output voltages from 5 V to 14 V are achievable with up to 100 mA output current.

The ADM8660 features a low power shutdown SD pin instead of the external oscillator OSC pin. This can be used to disable the device and reduce the quiescent current to 300 nA.

### Features and Benefits

.

ADM660: Inverts or Doubles Input Supply Voltage

.

ADM8660: Inverts Input Supply Voltage

.

100 mA Output Current

.

Shutdown Function ADM8660

.

2.2 µF or 10 µF Capacitors

.

0.3 V Drop at 30 mA Load

.

+1.5 V to +7 V Supply

.

Low Power CMOS: 600 µA Quiescent Current

.

Selectable Charge Pump Frequency 25 kHz/120 kHz

.

Pin Compatible Upgrade for MAX660, MAX665, ICL7660

.

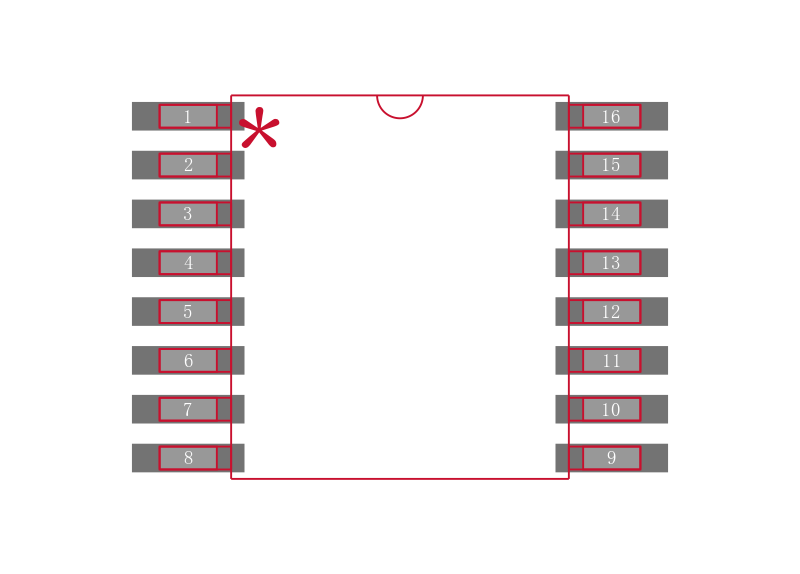

Available in 16-Lead TSSOP

.

Package
