AD8009JRTZ-REEL7
数据手册.pdfANALOG DEVICES AD8009JRTZ-REEL7 运算放大器, 单路, 845 MHz, 1个放大器, 5.5 kV/µs, 5V 至 ± 6V, SOT-23, 5 引脚

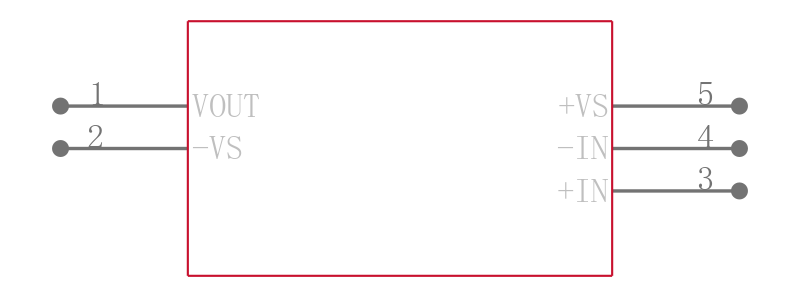

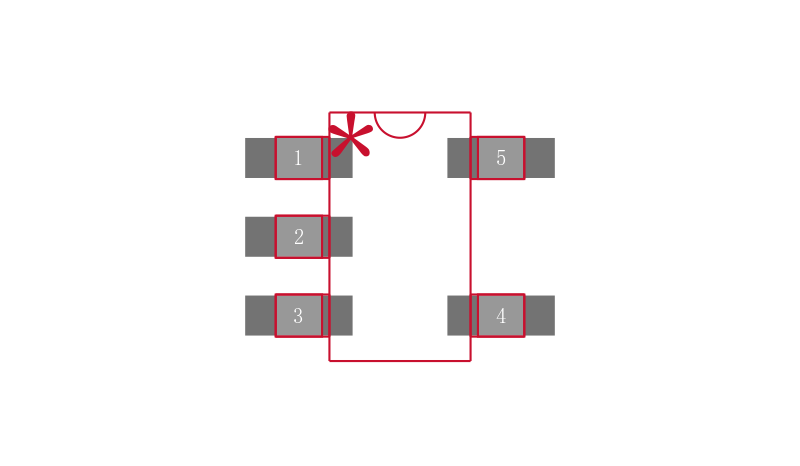

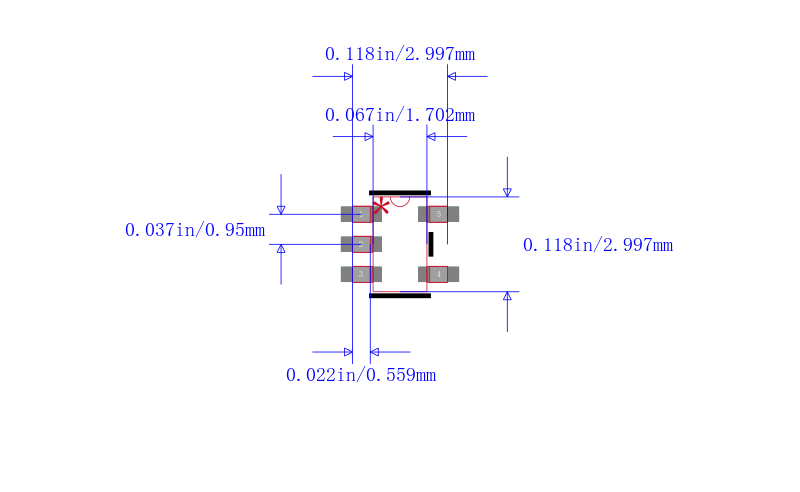

The is an ultrahigh speed Current Feedback Amplifier for use with high resolution video graphics. The low distortion amplifier with a phenomenal 5500V/µs slew rate that results in a rise time of 545ps, making it ideal as a pulse amplifier. The high slew rate reduces the effect of slew rate limiting and results in the large signal bandwidth of 440MHz required for high resolution video graphic systems. Signal quality is maintained over a wide bandwidth with worst-case distortion of -40dBc at 250MHz G=+10, 1Vp-p. For applications with multi-tone signals, such as IF signal chains, the third order intercept 3IP of 12dBm is achieved at the same frequency. This distortion performance coupled with the current feedback architecture make the AD8009 a flexible component for a gain stage amplifier in IF/RF signal chains.
- .
- Ultra high speed
- .
- Good video specifications
- .
- High output drive
- .
- Settling time of 10ns to 0.1%, 2V step, G=+2
- .
- 14mA Typical supply current
- .
- 0.01% Differential gain error
- .
- 0.01° Differential phase error
ESD sensitive device, electrostatic charges as high as 4000V readily accumulate on the human body and test equipment and can discharge without detection.
