ADM805LANZ
数据手册.pdfADI(亚德诺)
主动器件

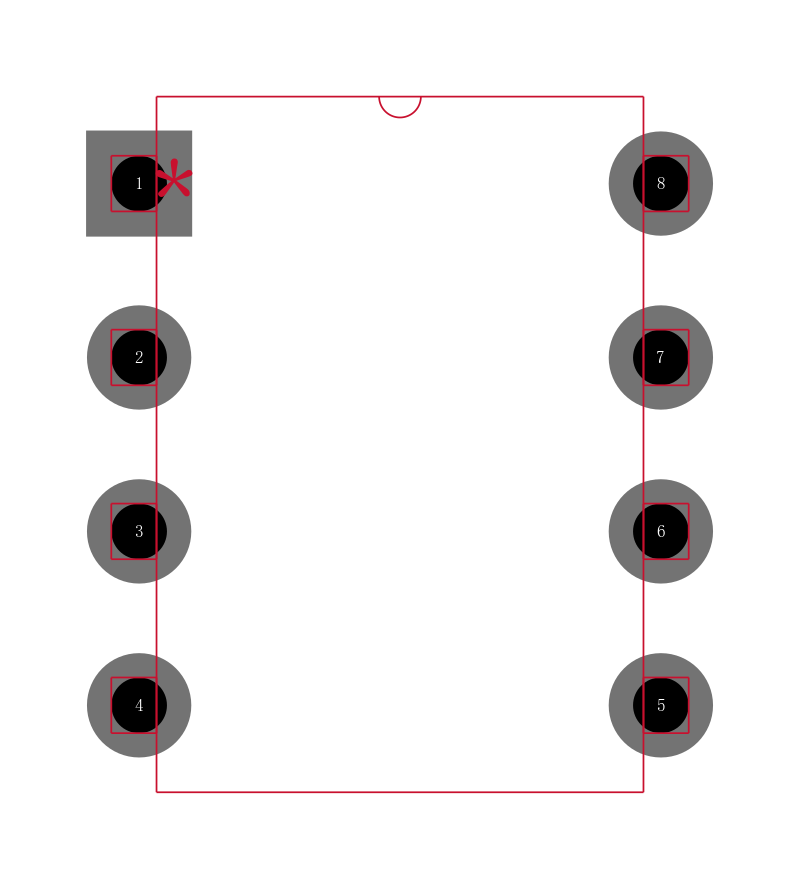

ANALOG DEVICES ADM805LANZ 监控器电路, 加电, 掉电和欠压条件复位, 4.75V-5.5V输入, DIP-8
The ADM805 series Supervisory Circuit offers complete single chip solutions for power supply monitoring and battery control functions in microprocessor systems. These functions include µP reset, backup battery switchover, watchdog timer and power failure warning. On the ADM690A/ADM802L/ADM805L the reset voltage threshold is 4.65V. The ADM805L/M provides an active high reset output, RESET instead of RESET. The family of products is fabricated using an advanced epitaxial CMOS process combining low power consumption and high reliability. RESET assertion is guaranteed with VCC as low as 1V. They provide a pin-compatible upgrade for the MAX690A/MAX692A/MAX802L/MAX802M/MAX805L.
- .
- Automatic battery backup power switching
- .
- Voltage monitor for power-fail
- .
- Reset assertion down to 1V VCC
- .
- 1.6s Watchdog timer
- .
- 100mA Quiescent supply current
