ADP151ACPZ-1.8-R7

超低噪声200 mA时， CMOS线性稳压器 Ultralow Noise, 200 mA, CMOS Linear Regulator

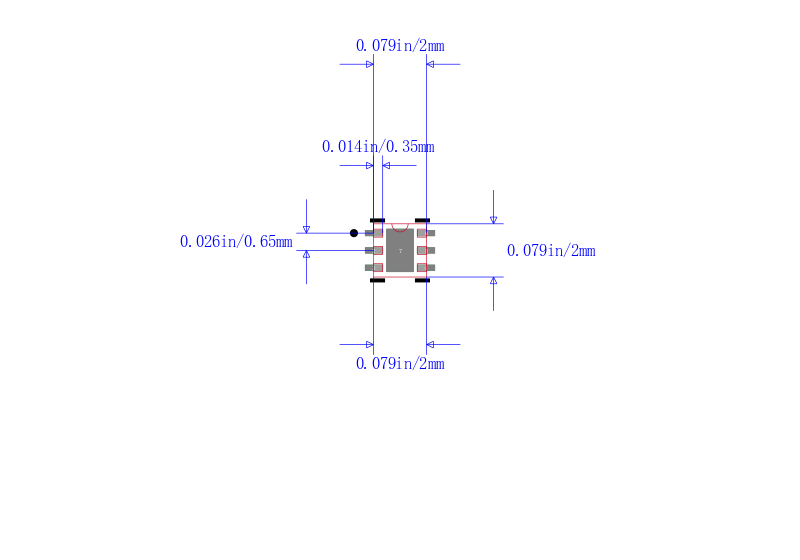

PMIC - 稳压器 - 线性 正 固定 输出 200mA 6-LFCSP-UD（2x2）

得捷:
ULTRALOW NOISE, 200MA, CMOS LINE

立创商城:
ADP151ACPZ-1.8-R7

艾睿:
Use this LDO ADP151ACPZ-1.8-R7 linear regulator from Analog Devices to vary your voltage levels to your desired level. It has an overall accuracy of ±1 %. Its typical dropout voltage at current is 0.14@200mA V. This voltage regulation device&s;s single output can produce a current up to 0.2 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.2 V and no higher than 5.5 V. With a fixed output that has a voltage of 1.8 V, this is power management at its best. By operating at a load regulation of 0.003%/mATyp and line regulation of 0.05%/V you can provide a constant voltage at your output. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.

Chip1Stop:
LDO Regulator Pos 1.8V 0.2A 6-Pin LFCSP EP T/R

Verical:
LDO Regulator Pos 1.8V 0.2A 6-Pin LFCSP EP T/R
