AD5790BCPZ-RL7

系统就绪， 20位， ± 2LSB INL System Ready, 20-Bit, ±2LSB INL

Product Details

The AD5790 1 is a single 20-bit, voltage out Dac that operates from a bipolar supply up to 33V. Reference buffers are also provided on-chip The AD5790 accepts a positive reference input in the range of 5V to VDD – 2.5V and a negative reference input in the range of VSS + 2.5v to 0V. The AD5790 offers a relative accuracy of +/-2 LSB"s max and operation is guaranteed monotonic with a -1 LSB to +3 LSB"s DNL specification.

The part uses a versatile 3-wire serial interface that operates at clock rates up to 35 MHz and is compatible with standard SPI®, QSPI™, MICROWIRE™, and DSP interface standards. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0V and in a known output impedance state and remains in this state until a valid write to the device takes place. The part provides a disable feature that places the output in a defined load state.

1Protected by U.S. Patent No. 7,884,747 and 8,089,380

**Product Highlights**

1. 20-bit resolution

2. Wide power supply range of up to ±16.5 V.

3. −40°C to +125°C operating temperature range.

4. Low 8 nV/√Hz noise.

5. Low ±0.018 ppm/°C gain error temperature coefficient.

**

**

**Applications**

.

Medical instrumentation

.

Test and measurement

.

Industrial control

.

Scientific and aerospace instrumentation

.

Data acquisition systems

.

Digital gain and offset adjustment

.

Power supply control

### Features and Benefits

.

Single 20-bit voltage output DAC, ±2 LSB INL

.

8 nV/√Hz output noise spectral density

.

0.1 LSB long term linearity error stability

.

±0.018 ppm/°C gain error temperature coefficient

.

2.5 µs output voltage settling time

.

3.5 nV-sec midscale glitch impulse

.

Integrated Precision Reference Buffers

.

Operating temperature range: −40°C to +125°C

.

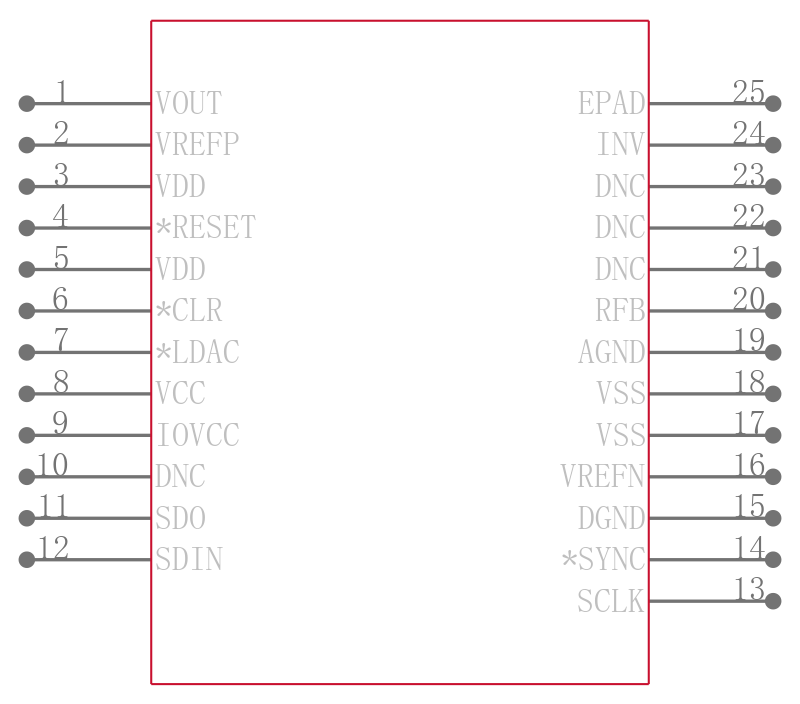

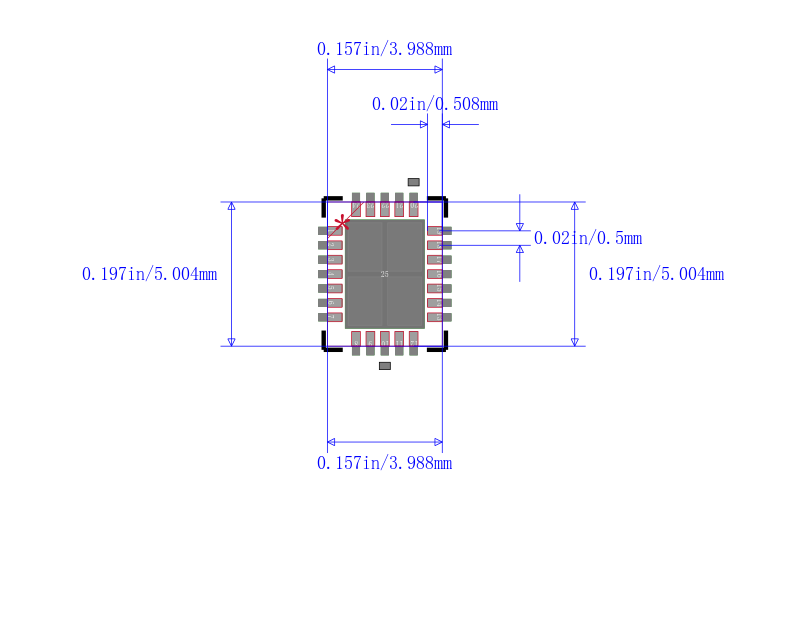

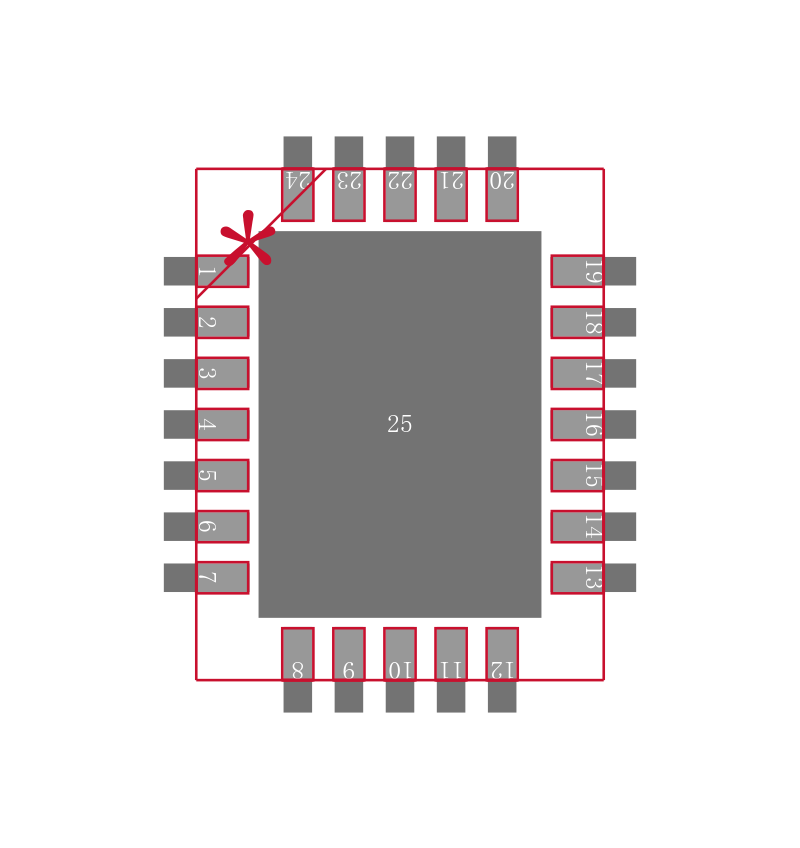

4mm x 5mm LFCSP package

.

Wide power supply range of up to ±16.5 V

.

35 MHz Schmitt-triggered digital interface

.

1.8 V compatible digital interface
