AD5541CR
数据手册.pdf5 V ，串行输入电压输出， 16位DAC 5 V, Serial-Input Voltage-Output, 16-Bit DACs
Product Details
The AD5541/AD5542 are single, 16-bit, serial input, voltage output digital-to-analog converters DACs that operate from a single 2.7 V to 5.5 V supply. The DAC output range extends from 0 V to VREF.
The DAC output range extends from 0 V to VREF and is guaranteed monotonic, providing 1 LSB INL accuracy at 16 bits without adjustment over the full specified temperature range of −40°C to +85°C. Offering unbuffered outputs, the AD5541/AD5542 achieve a 1 μs settling time with low power consumption and low offset errors. Providing a low noise performance of 11.8 nV/√Hz and low glitch, the AD5541/AD5542 is suitable for deployment across multiple end systems.
The AD5542 can be operated in bipolar mode, which generates a ±VREF output swing. The AD5542 also includes Kelvin sense connections for the reference and analog ground pins to reduce layout sensitivity.

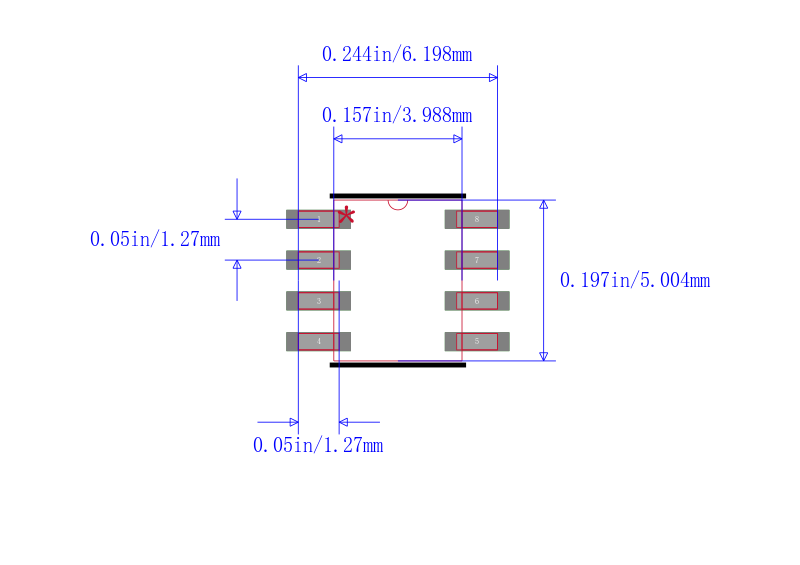

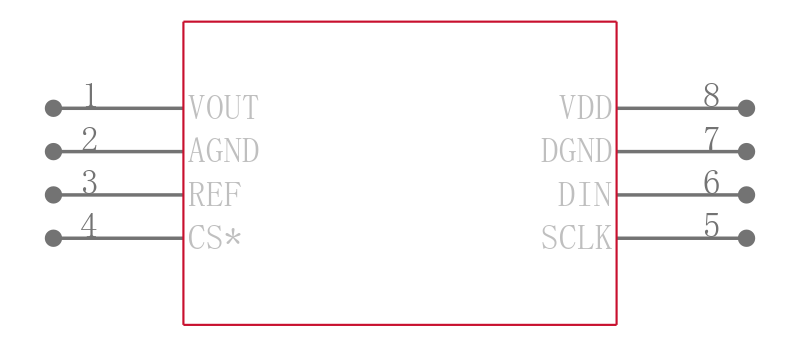

The AD5541/AD5542 utilize a versatile 3-wire interface that is compatible with SPI, QSPI™, MICROWIRE™, and DSP interface standards. The AD5541/AD5542 are available in 8-lead and 14-lead SOIC packages.
**Product Highlights**
1. Single-Supply Operation. The AD5541 and AD5542 are fully specified and guaranteed for a single 2.7 V to 5.5 V supply.
2. Low Power Consumption. These parts consume typically 0.625 mW with a 5 V supply and 0.375 mW at 3 V.
3. 3-Wire Serial Interface.
4. Unbuffered Output Capable of Driving 60 kΩ Loads. This reduces power consumption because there is no internal buffer to drive.
5. Power-On Reset Circuitry.
**Applications**
- .
- Digital gain and offset adjustment
- .
- Automatic test equipment
- .
- Data acquisition systems
- .
- Industrial process control
### Features and Benefits
- .
- Full 16-bit performance
- .
- 3 V and 5 V single-supply operation
- .
- Low Power 0.625 mW power dissipation
- .
- 1 μs settling time
- .
- Unbuffered voltage output capable of driving 60 kΩ loads directly
- .
- SPI-/QSPI-/MICROWIRE-compatible interface standards
- .
- Power-on reset clears DAC output to 0 V unipolar mode
- .
- 5 kV HBM ESD classification
- .
- Low glitch: 1.1 nV-sec
