AD7564BNZ

ANALOG DEVICES  AD7564BNZ  数模转换器, 四路, 12 bit, 1.8 MSPS, 串行, 3V 至 5.5V, 4.75V 至 5.25V, DIP, 28 引脚

Product Details

The AD7564 contains four 12-bit DACs in one monolithic device. The DACs are standard current output with separate VREF , IOUT1 , IOUT2 and RFB terminals. These DACs operate from a single +3.3 V to +5 V supply.

The AD7564 is a serial input device. Data is loaded using FSIN, CLKIN and SDIN. Two address pins A0 and A1 set up a device address, and this feature may be used to simplify device loading in a multi-DAC environment. Alternatively, A0 and A1 can be ignored and the serial out capability used to configure a daisy-chained system.

All DACs can be simultaneously updated using the asynchronous LDAC input, and they can be cleared by asserting the asynchronous CLR input.

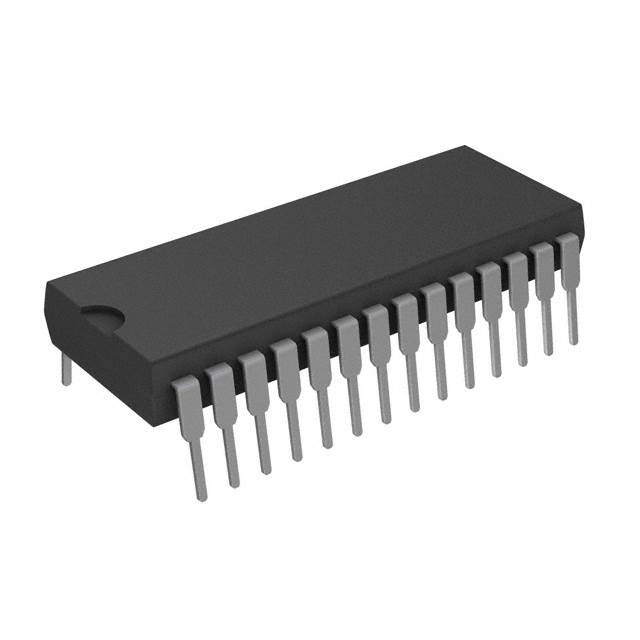

The device is packaged in 28-pin SOIC, SSOP and DIP packages.

**APPLICATIONS**

.

Process control

.

Portable instrumentation

.

General purpose test equipment

### Features and Benefits

.

Four 12-Bit DACs in One Package

.

4-Quadrant Multiplication

.

Separate References

.

Single Supply Operation

.

Guaranteed Specifications with +3.3V/+5 Supply

.

Low Power

.

Versatile Serial Interface

.

Simultaneous Update Capability

.

Reset Function

.

28-Pin SOIC, SSOP and DIP Packages
