AD7680BRJZ-R2

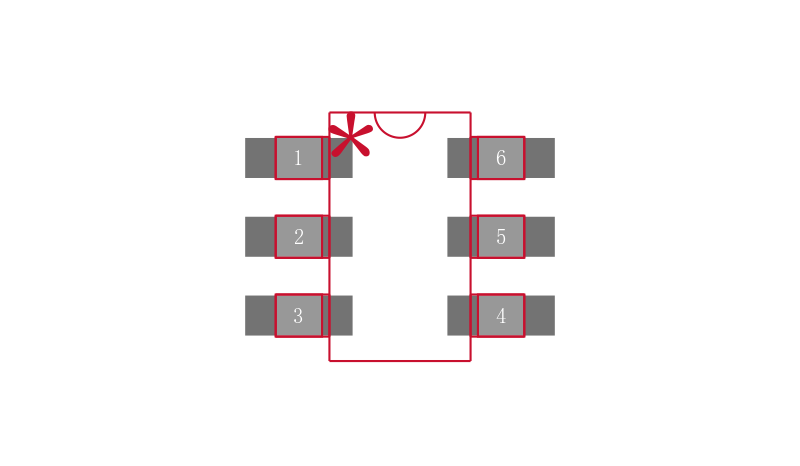

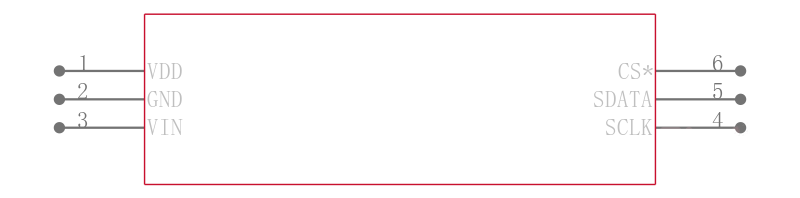

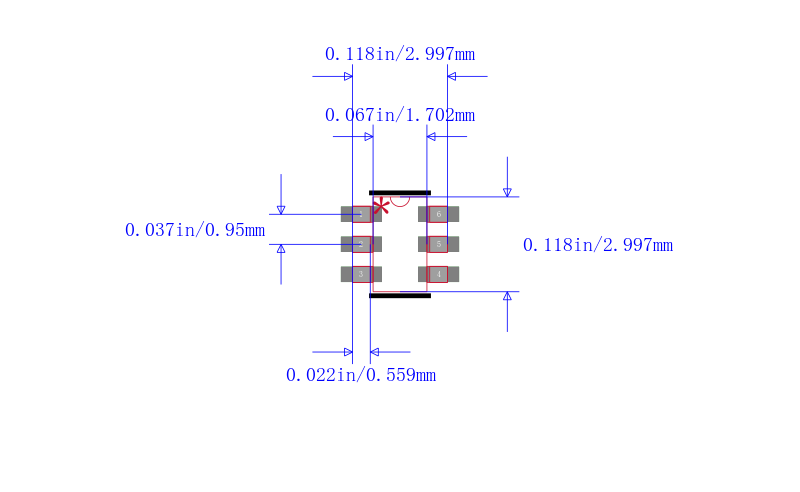

ANALOG DEVICES  AD7680BRJZ-R2  模数转换器, 16 bit, 100 kSPS, SOT-23

The is a 16-bit fast low power successive approximation Analog-to-digital Converter ADC operates from a single 2.5 to 5.5V power supply and features throughput rates up to 100kSPS. The part contains a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 7MHz. The conversion process and data acquisition are controlled using CS and the serial clock, allowing the devices to interface with microprocessors or DSPs. The input signal is sampled on the falling edge of CS and the conversion is also initiated at this point. There are no pipeline delays associated with the part. It uses advanced design techniques to achieve very low power dissipation at fast throughput rates. The reference for the part is taken internally from VDD, which allows the widest dynamic input range to the ADC. Thus, the analog input range for this part is 0V to VDD. The conversion rate is determined by the SCLK frequency.

.

Flexible power/serial clock speed management

.

No pipeline delays

.

High speed serial interface SPI™/QSPI™/MICROWIRE™/DSP compatible
