AD5405YCPZ-REEL7

DAC 2CH R-2R 12Bit Automotive 40Pin LFCSP EP T/R

Product Details

The AD5405 is a CMOS, 12-bit, dual-channel, current output digital-to-analog converter DAC. This device operates from a 2.5 V to 5.5 V power supply, making it suited to battery-powered and other applications.

As a result of manufacture with a CMOS submicron process, the device offers excellent 4-quadrant multiplication characteristics, with large signal multiplying bandwidths of up to 10 MHz.

The applied external reference input voltage VREF determines the full-scale output current. An integrated feedback resistor RFB provides temperature tracking and full-scale voltage output when combined with an external I-to-V precision amplifier. This device also contains the 4-quadrant resistors necessary for bipolar operation and other configuration modes.

This DAC uses data readback, allowing the user to read the contents of the DAC register via the DB pins. On power-up, the internal register and latches are filled with 0s, and the DAC outputs are at zero scale.

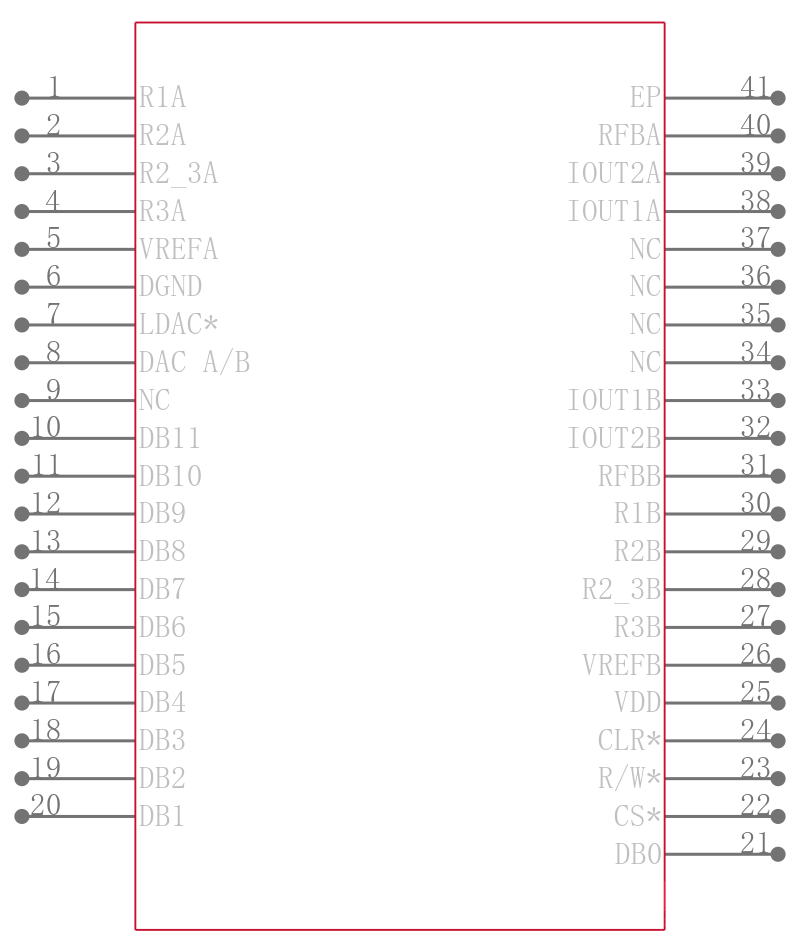

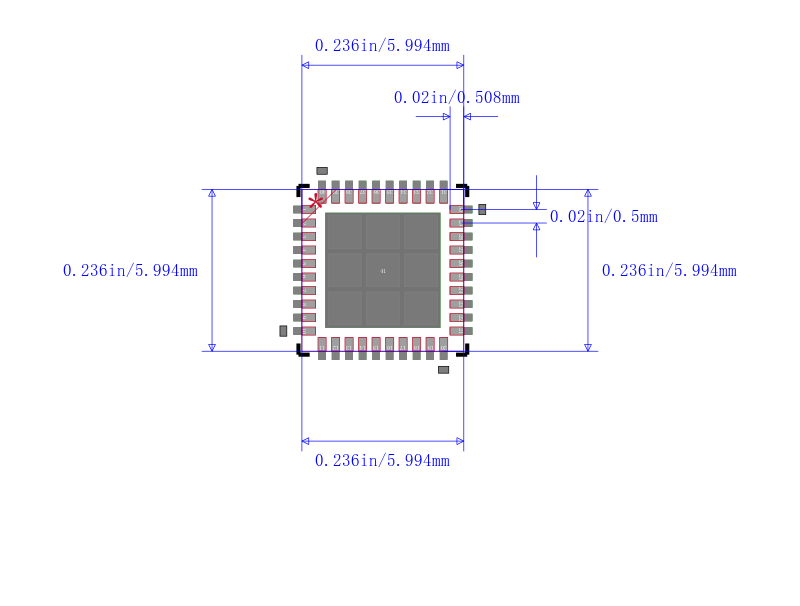

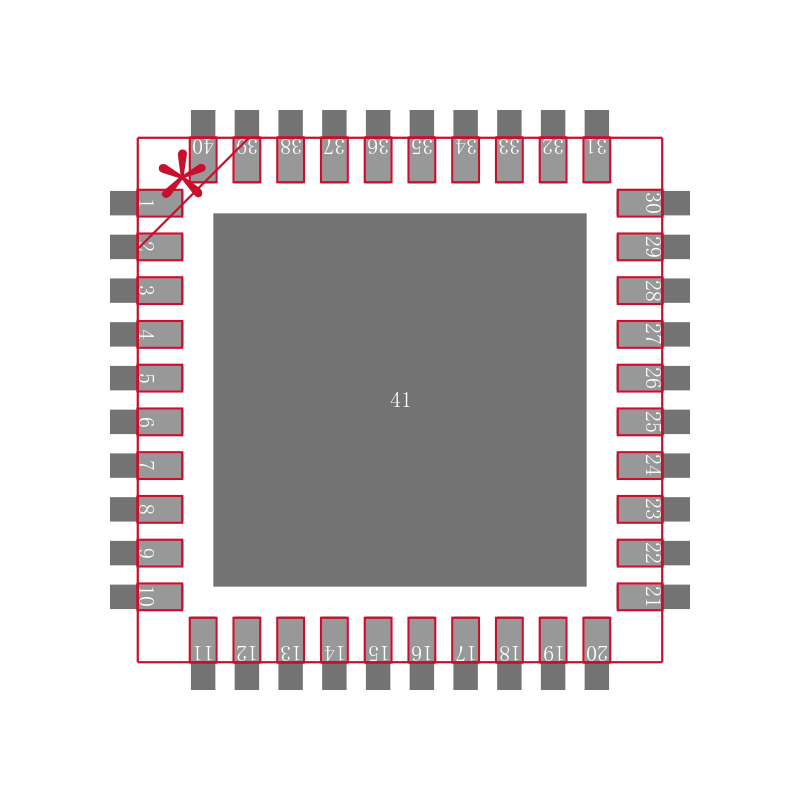

The AD5405 has a 6 mm × 6 mm, 40-lead LFCSP package.

**Applications**

.

Portable battery-powered applications

.

Waveform generators

.

Analog processing

.

Instrumentation applications

.

Programmable amplifiers and attenuators

.

Digitally controlled calibration

.

Programmable filters and oscillators

.

Composite video

.

Ultrasound

.

Gain, offset, and voltage trimming

### Features and Benefits

.

10 MHz multiplying bandwidth

.

On-chip 4-quadrant resistors allow flexible output ranges

.

INL of ±1 LSB

.

40-lead LFCSP package

.

2.5 V to 5.5 V supply operation

.

±10 V reference input

.

21.3 MSPS update rate

.

Please see data sheet for additional features.
