AD5203ARZ10

ANALOG DEVICES  AD5203ARZ10  易失性数字电位器, 10 kohm, 四, SPI, ± 30%, 2.7 V

Product Details

The AD5203 contains four, 64-position digitally-controlled variable resistors VR. These parts perform the same electronic adjustment function as a potentiometer, trimmer or variable resistor. Each VR offers a completely programmable value of resistance, between the A terminal and the wiper or the B terminal and the wiper. The fixed A to B terminal resistance of 10K ohm, or 100K ohm has a ±1% channel-to-channel matching tolerance with a nominal temperature coefficient of 700 ppm/°C.

Wiper position programming defaults to midscale at system power ON when using the RS pin. Once powered the wiper position is programmed by a standard SPI, Microwire compatible serial data interface. In addition, a serial data output pin is available to daisy chain multiple packages to minimize the number of package-decode pins required from the system micro controller.

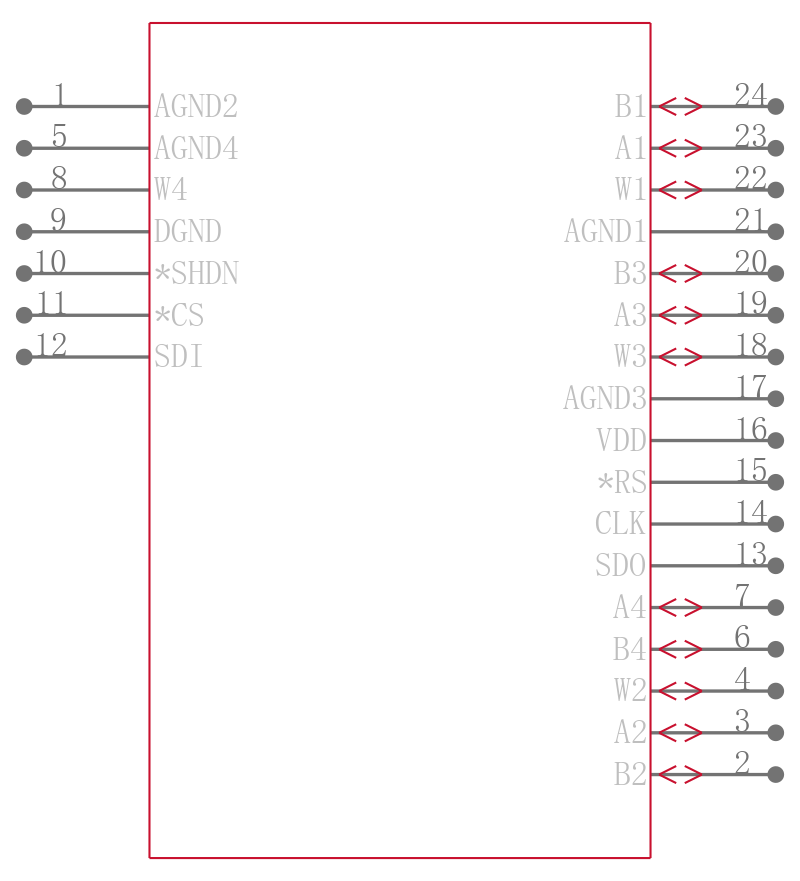

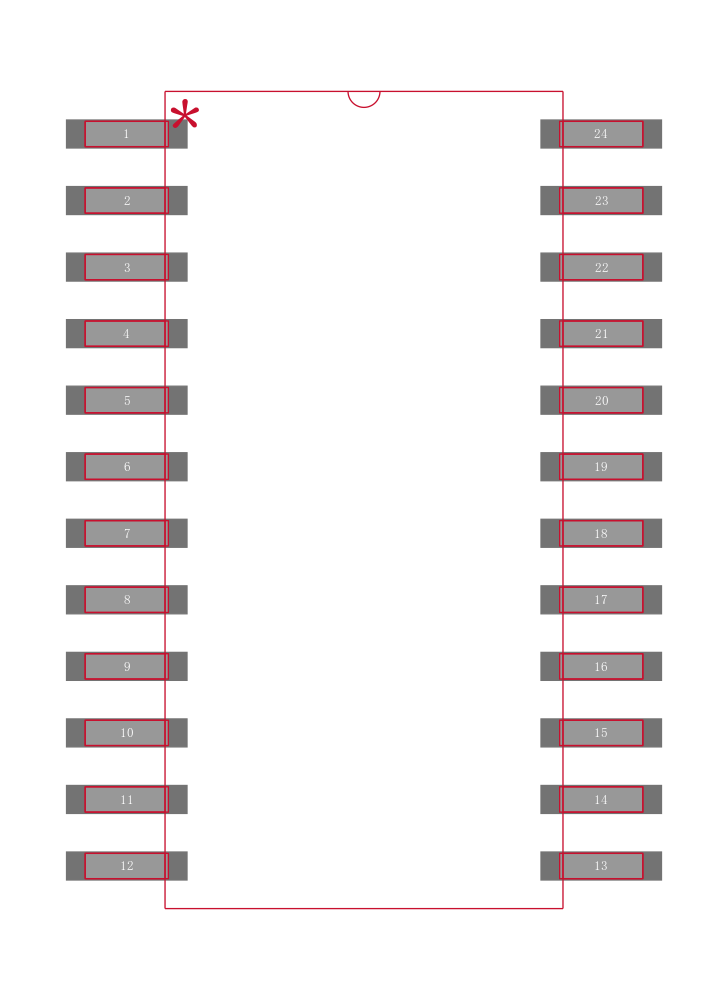

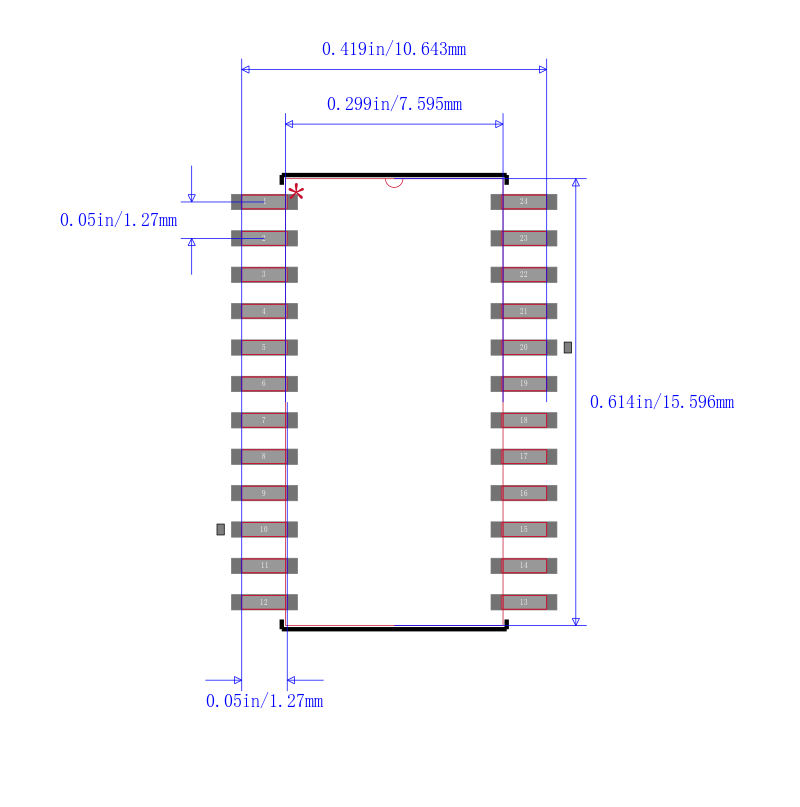

The AD5203 is available in a 24-lead narrow-body plastic DIP, the 24 lead surface mount package, and the compact 1.1mm thin TSSOP-24 package. All parts are guaranteed to operate over the extended-industrial-temperature range of -40°C to +85°C.

For pin compatible higher resolution applications, see the 256-Position AD8403 product.

**Applications**

* Mechanical Potentiometer Replacement

* Programmable Filters, Delays, Time Constants

* Volume Control, panning

* Line Impedance Matching

* Power Supply Adjustment operating from +3 to +5 volt power supplies

### Features and Benefits

.

64 Position

.

Replaces Four Potentiometers

.

10 kΩ, 100 kΩ

.

Power Shutdown - Less than 5 µA

.

3-Wire SPI-Compatible Serial Data Input

.

10 MHz Update Data Loading Rate

.

+2.7 V to +5.5 Single Supply Operation

.

Midscale Preset
