AD5641AKSZ-REEL7

SPI接口的LFCSP和SC70 SPI Interface in LFCSP and SC70

Product Details

The AD5641, a member of the _nano_DAC® family, is a single, 14-bit, buffered, voltage-out DAC that operates from a single 2.7 V to 5.5 V supply, typically consuming 75 μA at 5 V. The part comes in a tiny LFCSP and SC70 packages. Its on-chip precision output amplifier allows rail-to-rail output swing to be achieved. The AD5641 uses a versatile 3-wire serial interface that operates at clock rates up to 30 MHz and is compatible with SPI®, QSPI™, MICROWIRE™, and DSP interface standards. The reference for AD5641 is derived from the power supply inputs and, therefore, gives the widest dynamic output range. The part incorporates a power-on reset circuit, which ensures that the DAC output powers up to 0 V and remains there until a valid write to the device takes place.

The AD5641 contains a power-down feature that reduces current consumption typically to 0.2 μA at 3 V, and provides software-selectable output loads while in power-down mode. The part is put into power-down mode over the serial interface. The low power consumption of the part in normal operation makes it ideally suited to portable battery-operated equipment. The combination of small package and low power makes this _nano_DAC device ideal for level-setting requirements such as generating bias or control voltages in space-constrained and power-sensitive applications.

**Product Highlights**

.

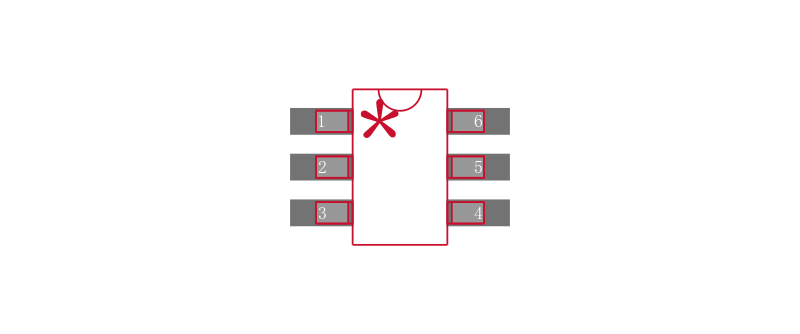

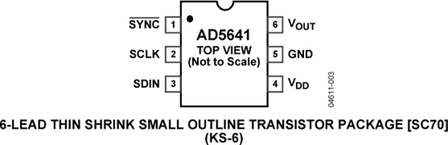

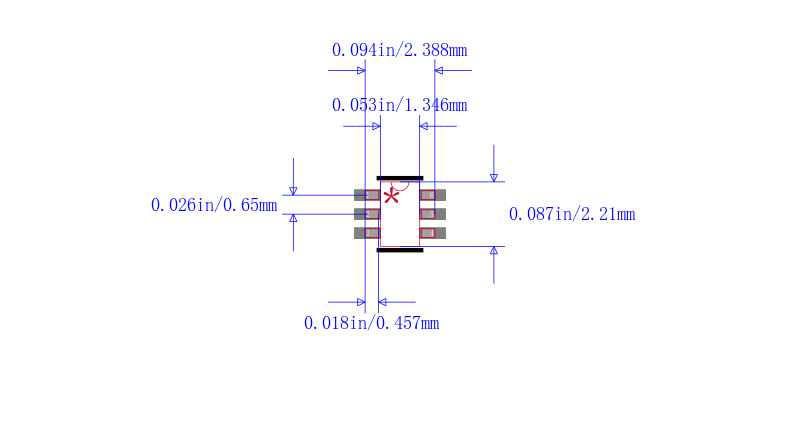

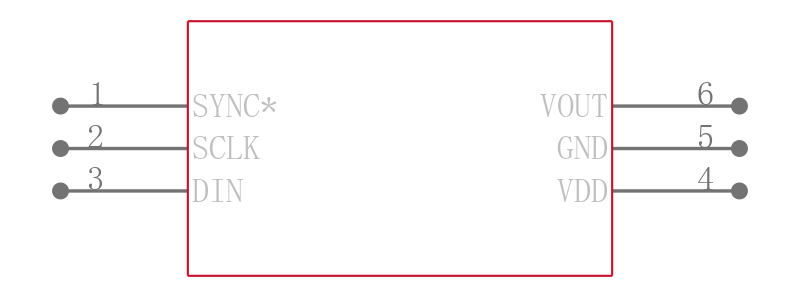

Available in a space-saving, 6-lead LFCSP and SC70 packages.

.

Low power, single-supply operation. The AD5641 operates from a single 2.7 V to 5.5 V supply and with a maximum current consumption of 100 μA, making it ideal for battery-powered applications.

.

The on-chip output buffer amplifier allows the output of the DAC to swing rail-to-rail with a typical slew rate of 0.5 V/μs.

.

Reference derived from the power supply.

.

High speed serial interface with clock speeds up to 30 MHz. Designed for very low power consumption. The interface powers up only during a write cycle.

.

Power-down capability. When powered down, the DAC typically consumes 0.2 μA at 3 V.

.

Power-on reset with brownout detection.

**Applications**

.

Voltage level setting

.

Portable battery-powered instruments

.

Digital gain and offset adjustment

.

Programmable voltage and current sources

.

Programmable attenuators

### Features and Benefits

.

6-lead LFCSP and SC70 packages

.

Micropower operation: 100 μA maximum at 5 V

.

Power-down to typically 0.2 μA at 3 V

.

Single 14-bit DAC

.

B version: ±4 LSB INL

.

A version: ±16 LSB INL

.

2.7 V to 5.5 V power supply

.

Guaranteed monotonic by design

.

Power-on reset to 0 V with brownout detection

.

3 power-down functions

.

Low power serial interface with Schmitt-triggered inputs

.

On-chip output buffer amplifier, rail-to-rail operation

.

SYNC interrupt facility
