A1220LLHLX-T

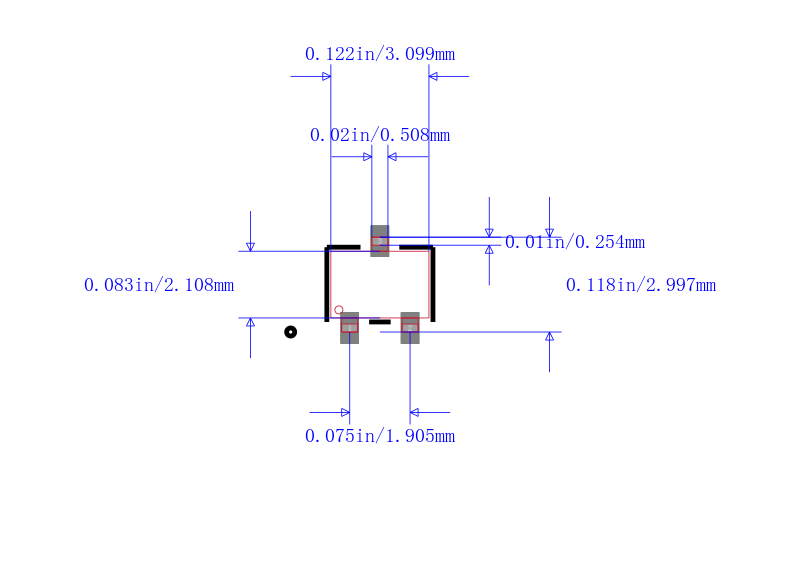

数据手册.pdf霍尔效应开关, 锁定式, 22 G, -23 G, 3 V, 24 V, SOT-23W
Description
The A1220, A1221, A1222, and A1223 Hall-effect sensor ICs are extremely temperature-stable and stress-resistant devices especially suited for operation over extended temperature ranges to 150°C. Superior high-temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device overmolding, temperature dependencies, and thermal stress. Each device includes on a single silicon chip a voltage regulator, Hall voltage generator, small-signal amplifier, chopper stabilization, Schmitt trigger, and a short-circuit protected open-drain output to sink up to 25 mA. A south pole of sufficient strength turns
the output on. A north pole of sufficient strength is necessary to turn the output off.
Features and Benefits
▪ Symmetrical latch switchpoints
▪ Resistant to physical stress
▪ Superior temperature stability
▪ Output short-circuit protection
▪ Operation from unregulated supply down to 3 V
▪ Reverse battery protection
▪ Solid-state reliability
▪ Small package sizes
