ADCLK944BCPZ-R7

2.5 V / 3.3 V ，四LVPECL输出的SiGe时钟扇出缓冲器 2.5 V/3.3 V, Four LVPECL Outputs, SiGe Clock Fanout Buffer

Product Details

The ADCLK944 is an ultrafast clock fanout buffer fabricated on the Analog Devices, Inc., proprietary XFCB3 silicon germanium SiGe bipolar process. This device is designed for high speed applications requiring low jitter.

The device has a differential input equipped with center-tapped, differential, 100 Ω on-chip termination resistors. The input can accept dc-coupled LVPECL, CML, 3.3 V CMOS single-ended, and ac-coupled 1.8 V CMOS, LVDS, and LVPECL inputs. A VREF pin is available for biasing ac-coupled inputs.

The ADCLK944 features four full-swing emitter-coupled logic ECL output drivers. For LVPECL positive ECL operation, bias VCC to the positive supply and VEE to ground. For ECL operation, bias VCC to ground and VEE to the negative supply.

The ECL output stages are designed to directly drive 800 mV each side into 50 Ω terminated to VCC − 2 V for a total differential output swing of 1.6 V.

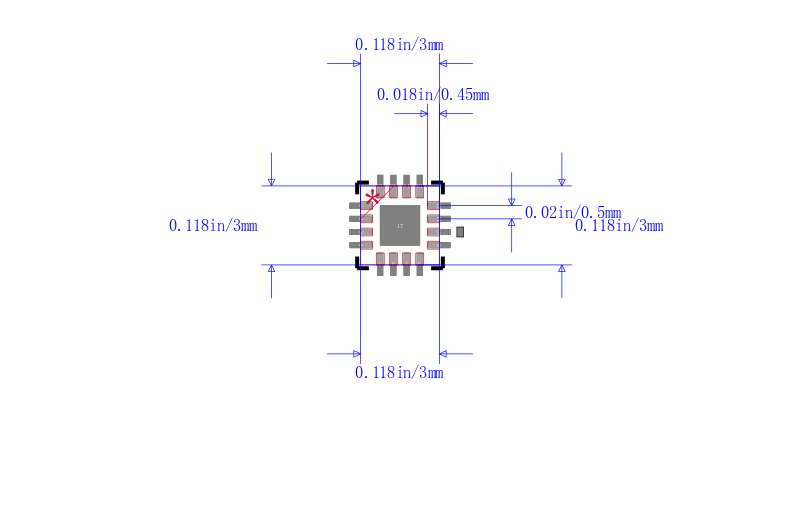

The ADCLK944 is available in a 16-lead LFCSP and is specified for operation over the standard industrial temperature range of −40°C to +85°C.

**Applications**

.

Low jitter clock distribution

.

Clock and data signal restoration

.

Level translation

.

Wireless communications

.

Wired communications

.

Medical and industrial imaging

.

ATE and high performance instrumentation

### Features and Benefits

.

Operating frequency: 7.0 GHz

.

Broadband random jitter:

50 fs rms

.

On-chip input terminations

.

Power supply VCC − VEE: 2.5 V to 3.3 V
