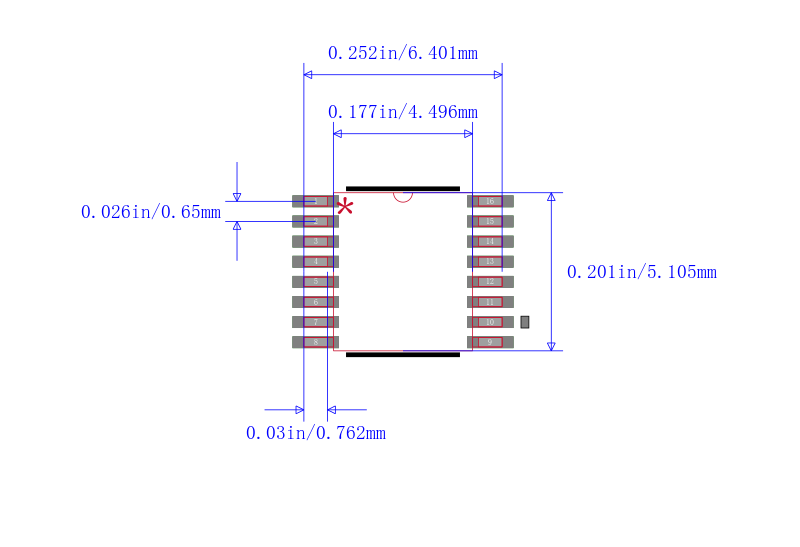

ADF4154BRU-REEL

小数N分频合成器 Fractional-N Frequency Synthesizer

GENERAL DESCRIPTION

The ADF4154 is a fractional-N frequency synthesizer that implements local oscillators in the up conversion and down conversion sections of wireless receivers and transmitters. It consists of a low noise digital phase frequency detector PFD, a precision charge pump, and a programmable reference divider. There is a Σ-Δ based fractional interpolator to allow programmable fractional-N division. The INT, FRAC, and MOD registers define an overall N-divider N = INT + FRAC/MOD. In addition, the 4-bit reference counter R-counter allows selectable REFIN frequencies at the PFD input. A complete phase-locked loop PLL can be implemented if the synthesizer is used with an external loop filter and a voltage-controlled oscillator VCO.

FEATURES

RF bandwidth to 4 GHz

2.7 V to 3.3 V power supply

Separate VP allows extended tuning voltage

Programmable dual-modulus prescaler 4/5, 8/9

Programmable charge pump currents

3-wire serial interface

Digital lock detect

Power-down mode

Pin compatible with the ADF4110/ADF4111/ADF4112/ADF4113, ADF4106, ADF4153

Programmable modulus on fractional-N synthesizer

Trade-off noise vs. spurious performance

Fast-lock mode with built-in timer

Loop filter design possible with simPLL™
