AD8139ACPZ-REEL7
数据手册.pdfANALOG DEVICES AD8139ACPZ-REEL7 差分放大器, 模数转换器驱动器, 1 放大器, 150 µV, 410 MHz, -40 °C, 125 °C

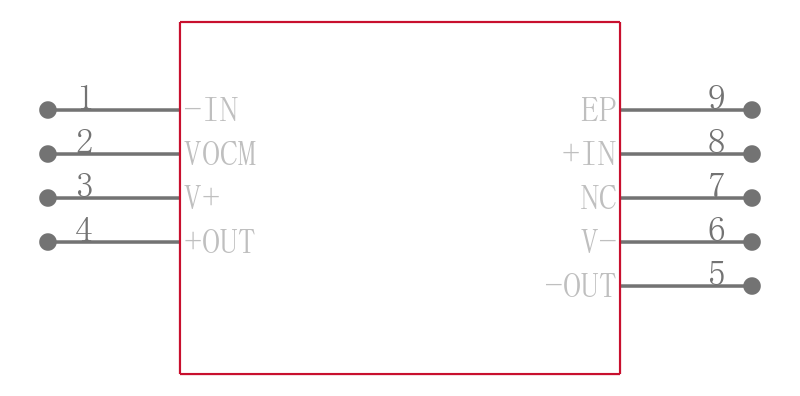

Product Details
The AD8139 is an ultralow noise, high performance differential amplifier with rail-to-rail output. With its low noise, high SFDR, and wide bandwidth, it is an ideal choice for driving analog-to-digital converters ADCs with resolutions to 18 bits. The AD8139 is easy to apply, and its internal common-mode feedback architecture allows its output common-mode voltage to be controlled by the voltage applied to one pin. The internal feedback loop also provides outstanding output balance as well as suppression of even-order harmonic distortion products. Fully differential and single-ended-to-differential gain configurations are easily realized by the AD8139. Simple external feedback networks consisting of four resistors determine the closed-loop gain of the amplifier.
The AD8139 is manufactured on the proprietary Analog Devices, Inc., second-generation XFCB process, enabling it to achieve low levels of distortion with input voltage noise of only 2.25 nV/√Hz.
The AD8139 is available in an 8-lead SOIC package with an exposed paddle EP on the underside of its body and a 3 mm × 3 mm LFCSP. It is rated to operate over the temperature range of −40°C to +125°C.
Applications
- .
- ADC drivers to 18 bits
- .
- Single-ended-to-differential converters
- .
- Differential filters
- .
- Level shifters
- .
- Differential PCB drivers
- .
- Differential cable drivers
### Features and Benefits
- .
- Fully differential
- .
- Low noise
- .
- 2.25 nV/√Hz
- .
- 2.1 pA/√Hz
- .
- Low harmonic distortion
- .
- 98 dBc SFDR at 1 MHz
- .
- 85 dBc SFDR at 5 MHz
- .
- 72 dBc SFDR at 20 MHz
- .
- High speed
- .
- 410 MHz, 3 dB BW G = 1
- .
- 800 V/µs slew rate
- .
- 45 ns settling time to 0.01%
- .
- 69 dB output balance at 1 MHz
- .
- 80 dB dc CMRR
- .
- Low offset: ±0.5 mV maximum
- .
- Low input offset current: 0.5 µA maximum
- .
- Differential input and output
- .
- Differential-to-differential or single-ended-to-differential operation
- .
- Rail-to-rail output
- .
- Adjustable output common-mode voltage
- .
- Wide supply voltage range: 5 V to 12 V
- .
- Available in a small SOIC package and an 8-lead LFCSP
