ADG528FBP

4/8通道故障保护模拟多路复用器 4/8 Channel Fault-Protected Analog Multiplexers

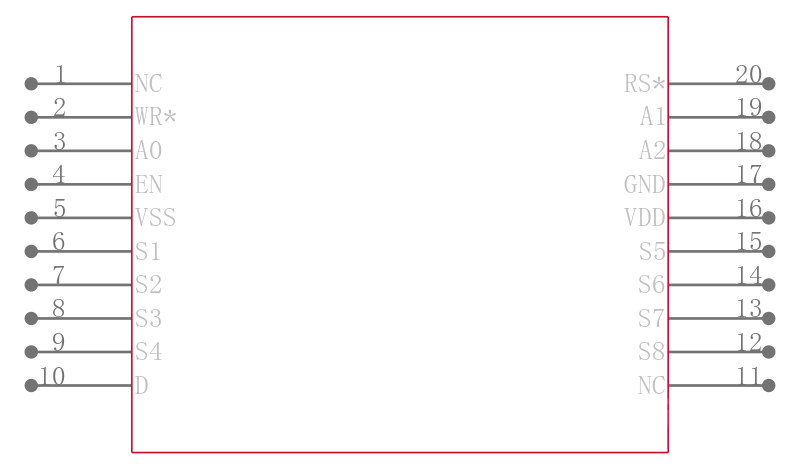

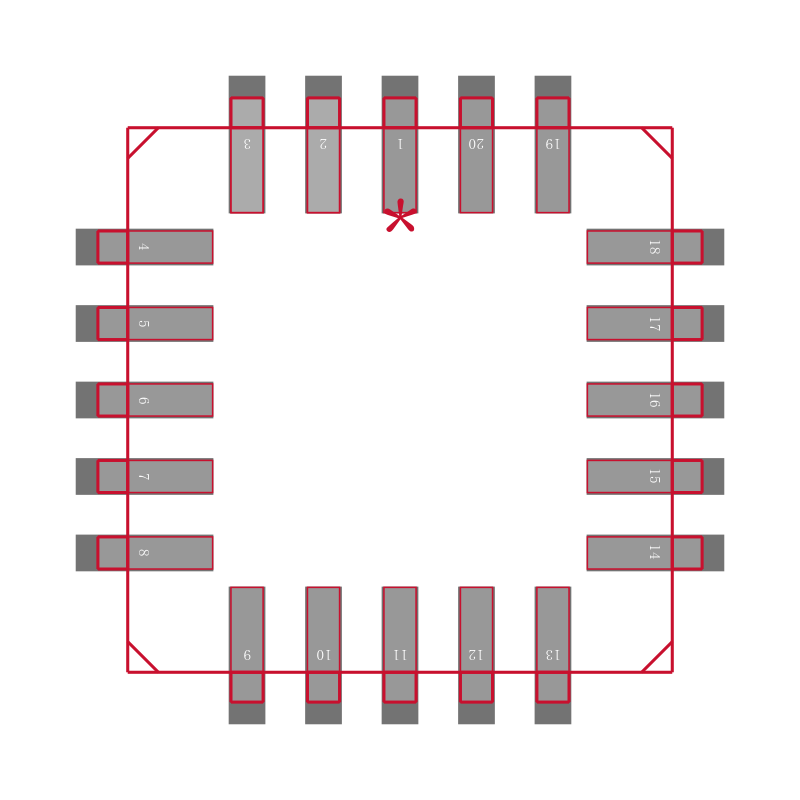

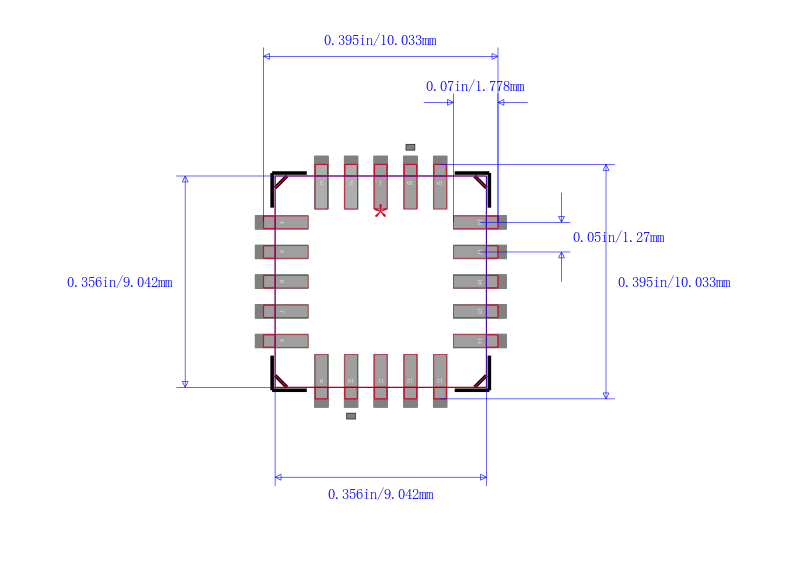

GENERAL DESCRIPTION

The ADG508F, ADG509F and ADG528F are CMOS analog multiplexers, the ADG508F and ADG528F comprising eight single channels and the ADG509F comprising four differential channels. These multiplexers provide fault protection. Using a series n-channel, p-channel, n-channel MOSFET structure, both device and signal source protection is provided in the event of an overvoltage or power loss. The multiplexer can withstand continuous overvoltage inputs from –40 V to +55 V. During fault conditions, the multiplexer input or output appears as an open circuit and only a few nanoamperes of leakage current will flow. This protects not only the multiplexer and the circuitry driven by the multiplexer, but also protects the sensors or signal sources that drive the multiplexer.

FEATURES

  Low On Resistance 300 V typ

  Fast Switching Times

     tON 250 ns max

     tOFF 250 ns max

  Low Power Dissipation 3.3 mW max

  Fault and Overvoltage Protection –40 V to +55 V

  All Switches OFF with Power Supply OFF

  Analog Output of ON Channel Clamped Within Power Supplies If an Overvoltage Occurs

  Latch-Up Proof Construction

  Break Before Make Construction

  TTL and CMOS Compatible Inputs

APPLICATIONS

  Existing Multiplexer Applications Both Fault-Protected and Nonfault-Protected

  New Designs Requiring Multiplexer Functions
