RN1104CT

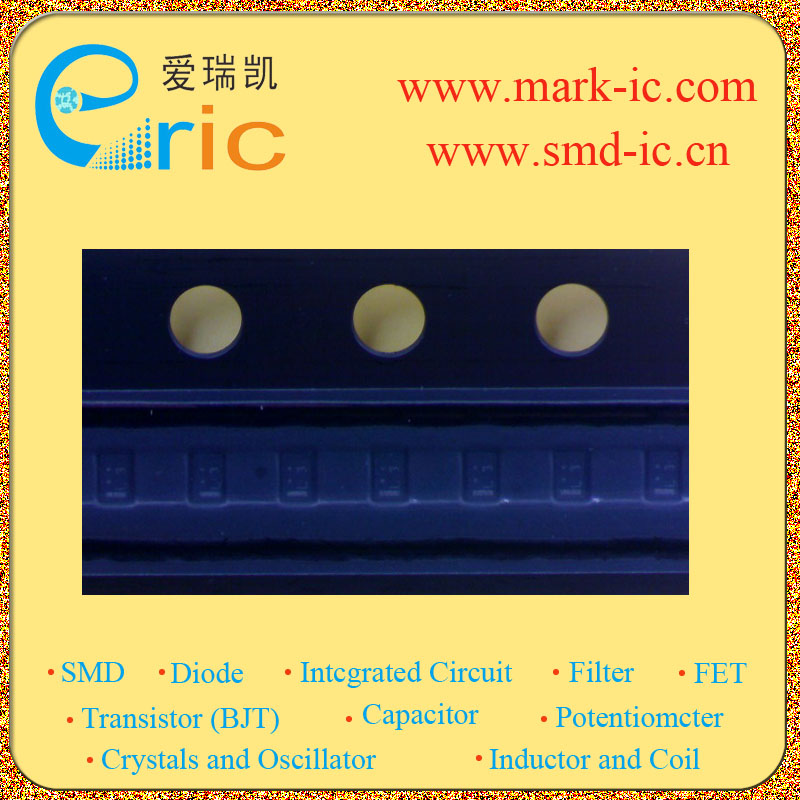

RN1104CT 带阻NPN三极管 20V 50mA 47k 47k 增益120 SOT-883/CST3/0402 marking/标记 L3 开关 逆变电路 接口电路和驱动器电路应用

集电极-基极反向击穿电压VBRCBO Collector-Base VoltageVCBO| 20V \---|--- 集电极-发射极反向击穿电压VBRCEO Collector-Emitter VoltageVCEO| 20V 集电极连续输出电流IC Collector CurrentIC| 50mA 基极输入电阻R1 Input ResistanceR1| 47KΩ/Ohm 基极-发射极输入电阻R2 Base-Emitter ResistanceR2| 47KΩ/Ohm 电阻比R1/R2 Resistance Ratio| 1 直流电流增益hFE DC Current GainhFE| 120 截止频率fT Transtion FrequencyfT| 耗散功率Pc Power Dissipation| 0.05W/50mW Description & Applications| Features Switching, Inverter Circuit, Interface Circuit And Driver Circuit Applications Incorporating a bias resistor into the transistor reduces the number of parts, so enabling the manufacture of ever more compact equipment and lowering assembly cost. Complementary to the RN2104CT 描述与应用| 特性 开关，逆变电路，接口电路和驱动器电路应用 结合到晶体管偏置电阻器减少部件的数量，所以能够制造比更紧凑设备并降低装配成本。 对管是RN2104CT
