ECASD40J476M025K00

ECAS 系列 6.3 V 47 µF 2917 外壳尺寸 聚合物铝电解电容器

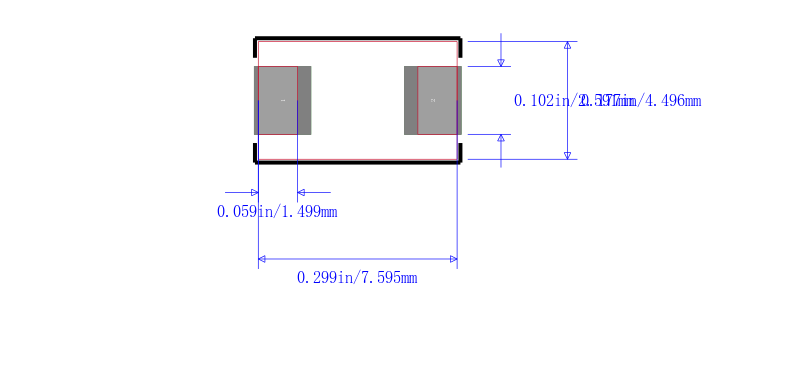

Murata"s conductive polymer aluminum solid capacitor can easily support changes to the input load into an integrated circuit. It can withstand a voltage of 6.3 VDC. It has 2 terminals. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product is 7.3 mm long, 1.9 mm tall and 4.3 mm deep. Its leakage current is 11.84@2Min μA. It has a tolerance of 20%.
