CAT5140ZI-50-GT3

CAT5140ZI-50-GT3

数据手册.pdf
ON Semiconductor(安森美) 电子元器件分类

CAT5140 系列 256 抽头 50 kOhm I2C 接口 数字电位器 - MSOP-8

50k 欧姆 电路 256 抽头 I²C 接口 8-MSOP


得捷:
IC DGTL POT 50KOHM 256TAP 8MSOP


立创商城:
数字电位计 POT,256 抽头,带 I2C 接口和集成的 EEPROM


贸泽:
数字电位计 IC DPP NONVOL SGL 256TAP I2C


艾睿:
This CAT5140ZI-50-GT3 digital potentiometer from ON Semiconductor will be incredibly useful when changing the resistance in your application. This digital potentiometer has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This device uses a single power supply.


安富利:
Digital Potentiometer 256POS 50KOhm Single 8-Pin MSOP T/R


富昌:
CAT5140 系列 256 抽头 50 kOhm I2C 接口 数字电位器 - MSOP-8


Chip1Stop:
Digital Potentiometer 50kOhm 256POS Non-Volatile Linear 8-Pin MSOP T/R


Verical:
Digital Potentiometer 50kOhm 256POS Non-Volatile Linear 8-Pin MSOP T/R


CAT5140ZI-50-GT3中文资料参数规格
技术参数

容差 ±20 %

无卤素状态 Halogen Free

供电电流 1 mA

电路数 1

针脚数 256

电阻 50 kΩ

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 2.5V ~ 5.5V

封装参数

安装方式 Surface Mount

引脚数 8

封装 MSOP-8

外形尺寸

长度 3 mm

宽度 3 mm

高度 1.1 mm

封装 MSOP-8

物理参数

工作温度 -40℃ ~ 85℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

制造应用 Gain Adjustment and Line Impedance Matching, Contrast, Brightness and Volume Control, Automated Calibration, LCD Screen Adjustment

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

CAT5140ZI-50-GT3引脚图与封装图

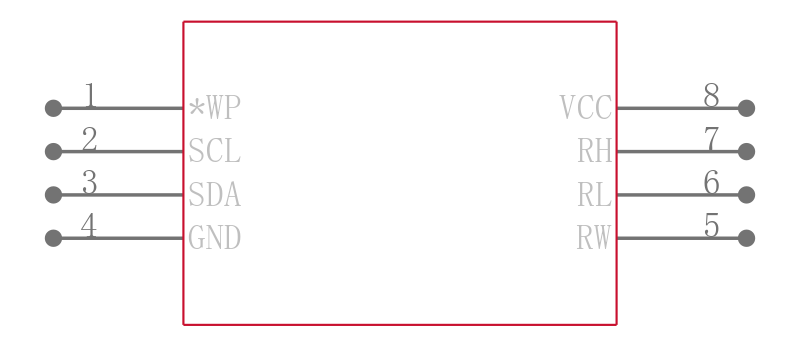

CAT5140ZI-50-GT3引脚图

CAT5140ZI-50-GT3引脚图

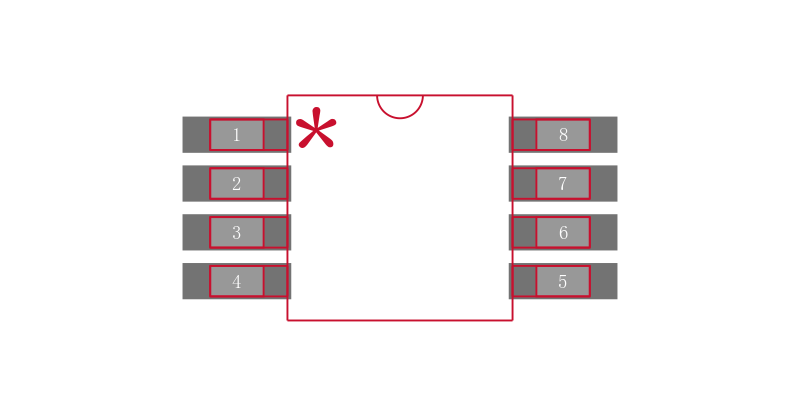

CAT5140ZI-50-GT3封装图

CAT5140ZI-50-GT3封装图

CAT5140ZI-50-GT3封装焊盘图

CAT5140ZI-50-GT3封装焊盘图
