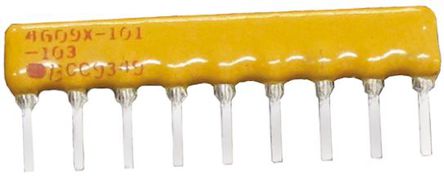

4609X-101-272LF

BOURNS  4609X-101-272LF  电阻网络, 2K7

8 总线器

Bourns 的 4600X 系列 8 总线电阻器具有广泛的电阻范围，适用于各种应用。由阻燃环氧树脂主体制成，这些网络电阻器防冲击、耐热且防潮。

### 特点和优势：

薄型

引脚封装系列让您可以灵活设计

对比背景上的标记可永久识别

提供从 10 Ω 到 10 MΩ 的电阻选项

欧时:
### 8 总线电阻器70°C 时功率 | 0.2W（单个），1.13W（总体） ---|--- 最大工作电压 | 100V 直流 尺寸（长 x 宽 x 高） | 22.81 x 2.49 x 5.08 mm 引线间距 | 2.54mm 电阻容差 | ±2% 温度系数 | ±100ppm/°C 温度系数记录 | ±50ppm/°C 工作温度 | -55°C → +125°C ![http://china.rs-online.com/largeimages/L140877-01.gif]http://china.rs-online.com/largeimages/L140877-01.gif ### SIL 封装 - 总线

立创商城:
2.7kΩ ±2%

e络盟:
固定阵列电阻, 2.7 kohm, 4609X系列, 8 元件, 总线, SIP, 9 引脚

艾睿:
Are you looking for a power-saving component that can be implemented in your circuit design? Bourns brings you their 4609X-101-272LF resistor array, essentially an IC chip with multiple resistors built in. This dependable part has a power rating of 1.13 W and a power rating per resistor of 0.2 1/5 W. Its temperature coefficient is ±100 ppm/°C. This product&s;s 8 resistors have a value of 2.7K Ohm. It has 9 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This product&s;s terminal pitch is 2.54 mm. This device utilizes thick film technology. This part has an operating temperature of -55 to 125 °C. The 4609X-101-272LF part has a pin termination style. This product is 22.81 mm long, 5.08 mm tall and 2.49 mm deep. It has a tolerance of 2%.

Allied Electronics:
Resistor; Thick Film; Networks & Arrays; 9Pins; 2.7K Ohm; 1.13W

Chip1Stop:
Res Thick Film NET 2.7K Ohm 2% 1.13W 100ppm/ C BUS Conformal 9-Pin SIP Pin Thru-Hole Bulk

TME:
Resistor network: X; 2.7kΩ; No.of resistors:8; THT; 0.2W; ±2%; 100V

Verical:
Res Thick Film NET 2.7K Ohm 2% 1.13W ±100ppm/C BUS Conformal Coated 9-Pin SIP Pin Thru-Hole Bulk

Newark:
# BOURNS  4609X-101-272LF  Fixed Network Resistor, Bussed, 2.7 kohm, 100 V, 8 Elements, Bussed, SIP, 200 mW

MASTER:
Res Thick Film NET 2.7K Ohm 2% 1.13W ±100ppm/°C BUS Conformal Coated 9-Pin SIP Pin Thru-Hole Bulk

Electro Sonic:
Res Thick Film NET 2.7K Ohm 2% 1.13W ±100ppm/°C BUS Conformal Coated 9-Pin SIP Pin Thru-Hole Bulk
