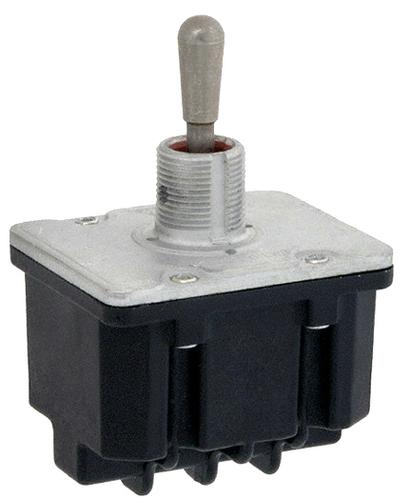

4TL1-2

互动式目录替换目录页 Interactive Catalog Replaces Catalog Pages

"s low-energy TL Series toggle switches were introduced to give designers the option of gold-plated contacts for switching “non-arching” loads. A range of circuitry, sealing levels and sizes provide even more options to maximize flexibility and enhance performance. This popular product line is UL recognized, CSA certified and CE approved as well as customer lauded.

TL toggle switches from Honeywell feature:

* Silver and/or gold-plated contacts for increased application flexibility

* High strength for durability in tough conditions

* Temperature resistant materials to enhance performance in challenging environments

* Non-tracking case material

* Quality at a competitive price

4TL1-2中文资料参数规格
技术参数

接触器类型 Standard

额定电流 15 A

方向 Vertical

触点类型 4PST

针脚数 2

额定电流Max 20A @28VDC

额定功率Max 745.7 VA

工作温度Max 71 ℃

工作温度Min -65 ℃

额定电压 125 VAC

封装参数

安装方式 Panel, Screw Terminals

外形尺寸

长度 33.5 mm

宽度 41.6 mm

高度 29.46 mm

物理参数

触点材质 Silver Cadmium Oxide

工作温度 -65℃ ~ 71℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

军工级 Yes

REACH SVHC版本 2014/06/16

海关信息

ECCN代码 EAR99

HTS代码 8536509040

4TL1-2引脚图与封装图
暂无图片
