TLC1514IDG4

10 位、400kSPS ADC，串行输出、SPI/DSP 兼容接口、断电模式、4 通道 16-SOIC -40 to 85

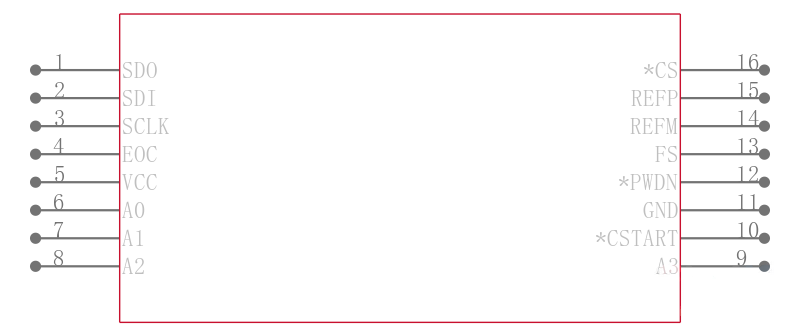

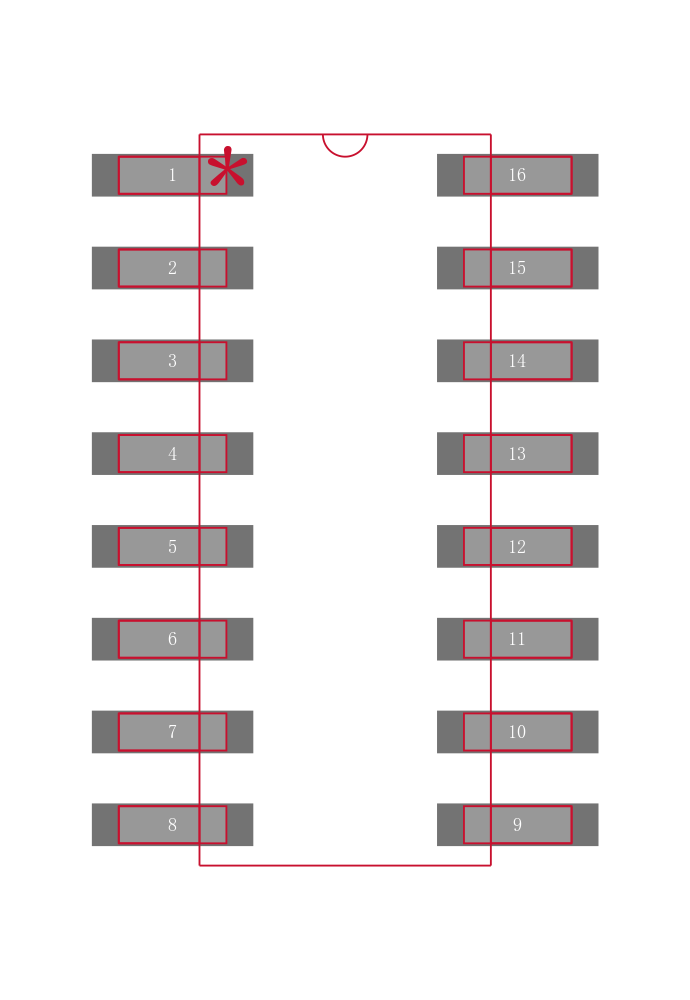

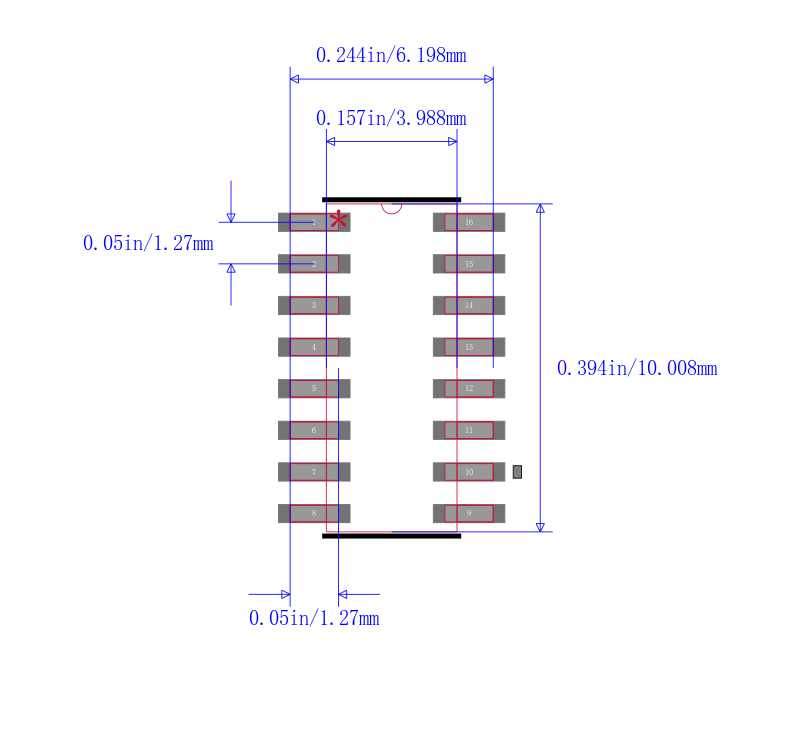

description

The TLC1518 and TLC1514 are a family of high-performance, 10-bit, low power, 1.4 µs, CMOS SAR analog-to-digital converters ADC which operate from a single 5 V power supply. These devices have three digital inputs and a 3-state output [chip select CS, serial input-output clock SCLK, serial data input SDI, and serial data output SDO] that provide a direct 4-wire interface to the serial port of most popular host microprocessors SPI interface. When interfaced with a DSP, a frame sync FS signal is used to indicate the start of a serial data frame.

• Maximum Throughput 400 KSPS

• Built-In Reference and 8× FIFO

• Differential/Integral Nonlinearity Error: ±0.5 LSB Max

• Signal-to-Noise and Distortion Ratio: 59 dB, fi = 12 kHz

• Spurious Free Dynamic Range: 72 dB, fi = 12 kHz

• SPI/DSP-Compatible Serial Interfaces With SCLK up to 20 MHz  Single Supply 5 Vdc

• Analog Input Range 0 V to Supply Voltage With 500 kHz BW

• Hardware Controlled and Programmable Sampling Period

• Low Operating Current 4 mA at 5.5 V External Ref, 6 mA at 5.5 V, Internal Ref

• Power Down: Software/Hardware

   Power-Down Mode 1 µA Max, Ext Ref,

   Auto Power-Down Mode 5 µA, Ext Ref

• Programmable Auto-Channel Sweep

• Pin Compatible, 12-Bit Upgrades Available TLC2554, TLC2558
