UPJ1E102MHD6
数据手册.pdf1mF ±20% 25V 1520mA100kHz1520mA Φ18mm
1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
得捷:
CAP ALUM 1000UF 20% 25V RADIAL
立创商城:
1000uF ±20% 25V
艾睿:

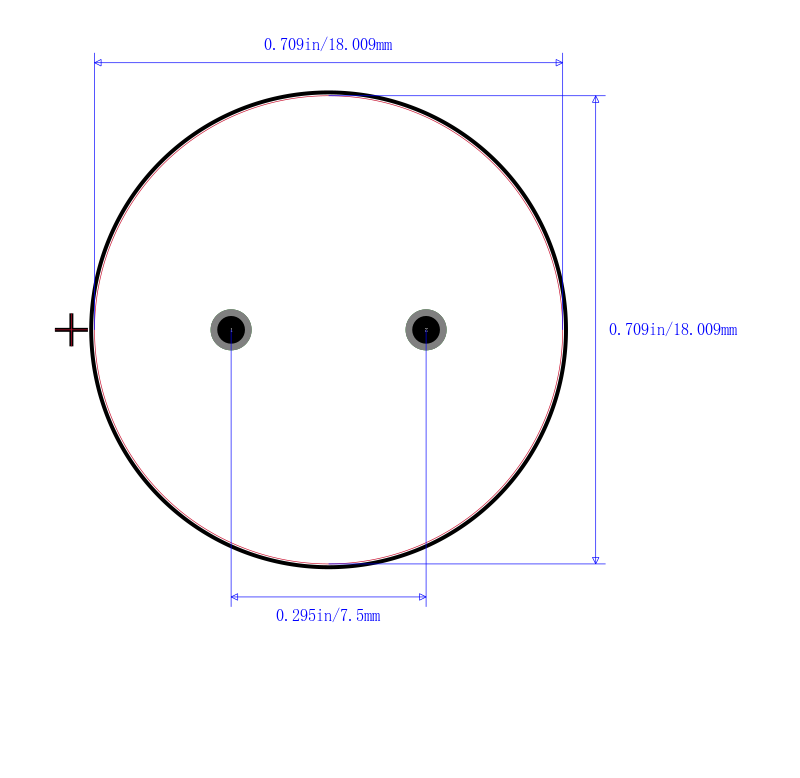

By implementing this electrolytic UPJ1E102MHD6 aluminum capacitor from Nichicon in your electronic circuit design you will lower costs in the long run. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. The UPJ1E102MHD6 aluminum electrolytic capacitor has a radial termination style. This product is 15 mm tall with a diameter of 18 mm. Its capacitance value is 1000uF. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. Its leakage current is 750@1Min μA. It has a tolerance of 20%.
安富利:
Cap Aluminum 1000uF 25V 20% 18 X 15mm Radial 7.5mm 1310mA 5000h 105°C Bulk
Verical:
Cap Aluminum Lytic 1000uF 25V 20% 18 X 15mm Radial 7.5mm 1310mA 5000h 105C Bulk
