TC4S11F
数据手册.pdf
Toshiba
东芝
主动器件

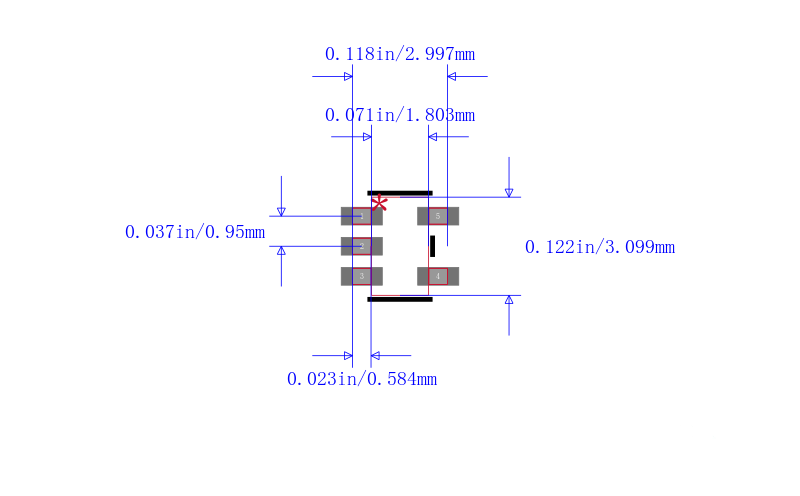

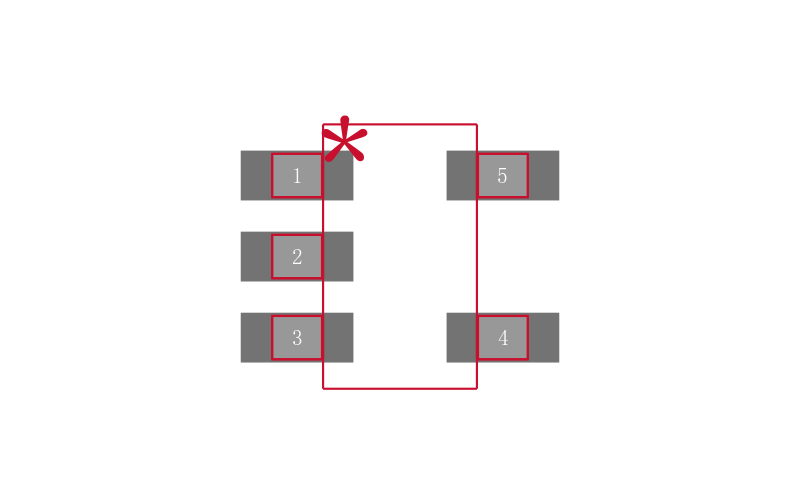

IC 与非门 TC4S11F SOT-153/SMV marking/标记 C1
逻辑类型Logic Type| 与非门 NAND Gate \---|--- 电路数Number of Circuits| 1 输入数Number of Inputs| 2 电源电压VccVoltage - Supply| 3v~18v 静态电流IqCurrent - Quiescent Max| 1µA 输出高，低电平电流Current - Output High, Low| -3.4mA,3.4mA 低逻辑电平Logic Level - Low| 1.5 V ~ 4 V 高逻辑电平Logic Level - High| 3.5v~11V 传播延迟时间@Vcc，CLMax Propagation Delay @ V, Max CL| 80ns @ 15V，50pF Description & Applications| The TC4S01F is 2-input positive logic NOR gates. Gate output with inverter buffer improve the input-output characteristics and even if the load capacitance increase,it can be stopped the change of propagation time 描述与应用| TC4S01F2输入正逻辑或非门。 门的输出与反相器缓冲区改进的输入 - 输出特性，即使负载电容的增加，它可以停止的传播时间的变化
