TPS65161PWPR

偏置电源，用于电视和显示器的TFT LCD面板 BIAS POWER SUPPLY FOR TV AND MONITOR TFT LCD PANELS

**DESCRIPON**

The TPS65161 family offers a compact power supply solution to provide all four voltages required by thin-film transistor TFT LCD panels. With their high current capabilities, the devices are ideal for large screen monitor panels and LCD TV applications.

**1****FEATURES**

•

.

*8-V to 14.7-V Input Voltage Range**

•

.

*V****S ****Output Voltage Range up to 19 V**

•

.

*TPS65161 has a 2.8-A Switch Current Limit**

•

.

*TPS65161A has a 3.7-A Switch Current Limit**

•

.

*TPS65161B has a 3.7-A Switch Current Limit ****and 100-mA Charge Pump Output Current**

•

.

*1.5% Accurate 2.3-A Step-Down Converter**

•

.

*500-kHz/750-kHz Fixed Switching Frequency**

•

.

*Negative Charge Pump Driver for VGL**

•

.

*Positive Charge Pump Driver for VGH**

•

.

*Adjustable Sequencing for VGL, VGH**

•

.

*Gate Drive Signal to Drive External MOSFET**

•

.

*Internal and Adjustable Soft Start**

•

.

*Short-Circuit Protection**

•

.

*Overvoltage Protection**

•

.

*Thermal Shutdown**

•

.

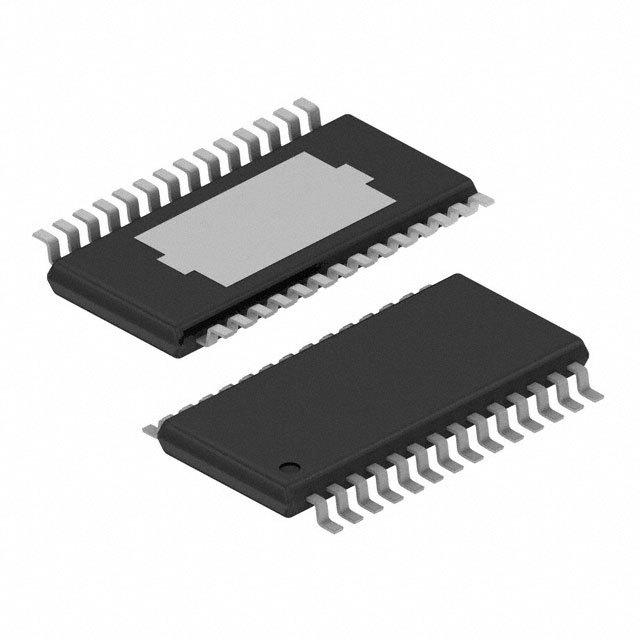

*Available in HTSSOP-28 Package**

**APPLICATIONS**

•

.

*TFT LCD Displays for Monitor and LCD TV**
