SFU24096E3BP2TO-I-DT-121-STD
数据手册.pdf(Swissbit)
主动器件

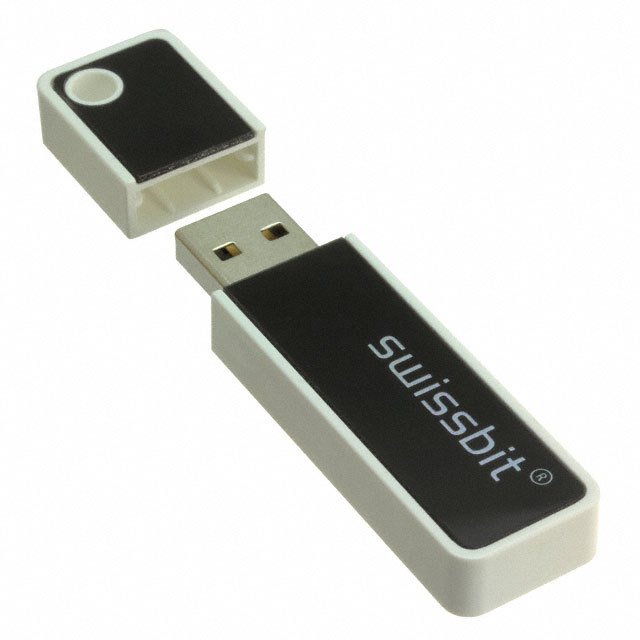

SWISSBIT SFU24096E3BP2TO-I-DT-121-STD 存储器, U盘, UNITEDCONTRAST, 4GB
The is a 4GB high-performance reliable USB Flash Drive with the high reliable SLC NAND flash in a fixed BOM includes the FW and configuration, supports the longest possible stable supply. This reduces the risk and compatibility issues together with non multiple requalification.
- .
- Highest endurance with SLC based NAND
- .
- Error correction code ECC
- .
- Hot plug capabilities without data loss
- .
- Long term availability
- .
- USB2.0 stick with USB-A connector - Diagnostic features with lifetime monitoring tool support
- .
- High performance 2.0 specification - Up to 29 and 9Mbps sequential read and write speed
- .
- Optimized FW algorithms - Patented power-OFF reliability technology and wear levelling technology
- .
- High reliability - SLC NAND flash with highest program erase cycles per block
- .
- Plug-and-play, bootable and removable drive
- .
- LED for operation indication
- .
- FAT32 format
- .
- Unique serial number
- .
- Controlled BOM and PCN process
- .
- 4.5 to 5.5V Operating voltage range low-power CMOS technology
