SKY67107-306LF

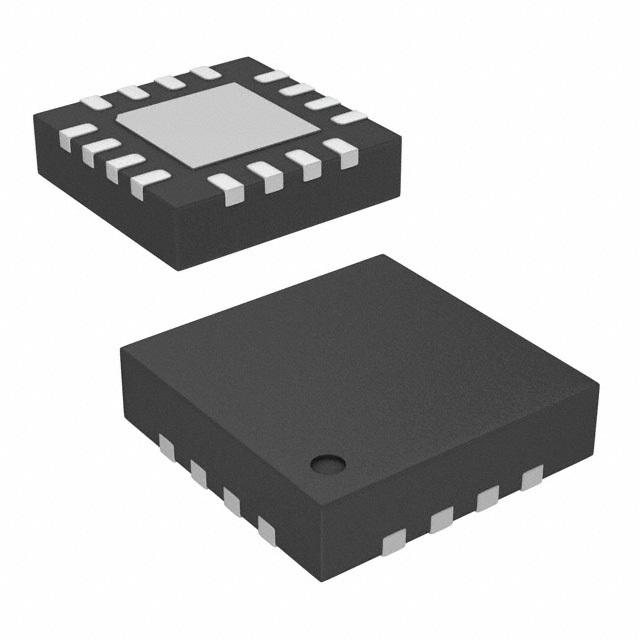

Narrow Band Low Power, 2300MHz Min, 2800MHz Max, 4 X 4MM, GREEN, QFN-16

The is a GaAs, pHEMT two stage Low-Noise Amplifier LNA with a active bias and high linearity performance. The advanced GaAs pHEMT enhancement mode front end device provides ultra-low Noise Figure NF while the output stage provides high gain and linearity with high efficiency. The internal active bias circuitry provides stable performance over temperature, and process variation. The device offers the Designer ability to externally adjust supply current, first stage gain and frequency response. Noise figure of 0.85 dB, 32 dB gain and +37.5 dBm OIP3 are achievable over broad frequency range with single 5V supply. These LNA’s are ideal for use in high performance Satellite Radio, and Wireless Infrastructure receiver applications with tower mounted amplifiers, repeaters and remote radio units. The SKY67107-306LF operates in the frequency range of 2.3 to 2.8 GHz and the associated evaluation board design is optimized for operation in this band. Evaluation boards optimized for different frequency bands and performance characteristics are available upon request. For lower frequency operation, the pin and layout compatible SKY67105-306LF 600 - 1100 MHz and SKY67106-306LF 1500 - 2300 MHz are available as well. All these LNAs are manufactured in a compact, 4 x 4 mm, 8-pin Quad Flat QFN No Lead package and are categorized as Skyworks Green.
